点击放大查看
UTS6JC147P
| Manufacturer | |
| Description | Standard Circular Connector 7P Straight Pin Plug Backshell Size 14 CONN PLUG CABLE 7X1.6 MALE 7 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts connector,plasticcirc,size14,strplugw/bkshl,for7size16pincont,sealed Coupling Plug UTS Trim Trio UTS 6+PEP Male 14, UTS6JC147P, Souriau Souriau 7路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1303 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250 V ac | Number of Poles | 6+PE |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 14 | Packaging | Bulk |
| Body Color | 71.5 | Shell Size | 14 |
| Orientation | Keyed | Termination | Crimp |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Cable End Type | 5...14 mm |
| Connector Type | Plug for Male Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Thermoplastic |
| Connector Style | straight | Insertion Angle | 14-7 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Male |
| Number of Contacts | 7 | Number of Positions | 7 |
| Shell Size - Insert | 14-7 | 1st Connector Gender | Male |
| Shell Material, Finish | Thermoplastic | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | UTS | CAD Drawing | 3D CAD Model |
| Product Type | Plugs | Amplifier Type | 34.6 |
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
UTS614CCRY
Souriau
Standard Circular Connector Plug Ring Size 14 Yellow CONN PLUG CODING RING SIZE14 YEL CODING RING, PLUG, YELLOW connectoraccessory,uts-series,optionalcolorcodedring,plugsize14,yellow Coding ring, cable side size 14, UTS614CCRY, Souriau
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
UTS614CCRR
Souriau
Standard Circular Connector Plug Ring Size 14 Red CONN PLUG CODING RING SIZE14 RED CABLE PLUG COLOR CODING SIZE 14 - RED CODING RING, UTS CIRCULAR CONNECTOR connectoraccessory,uts-series,optionalcolorcodedring,plugsize14,red Coding ring, cable side size 14, UTS614CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 14
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

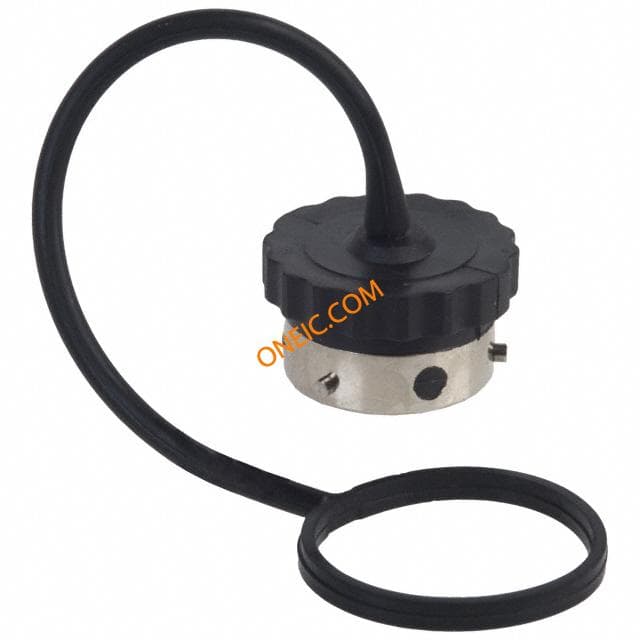

UTS614DCG
Souriau
Standard Circular Connector Plug Sealing Cap Shell Size 14 CONN PLUG SEALING CAP SIZE 14 UTS CABLE PLUG DUSTCAP - SIZE 14 connectoraccessory,uts-series,dustcapforsize14plug Cap for cable plug/socket size 14, UTS614DCG, Souriau
UTS7147S
Souriau
Standard Circular Connector 7P Sckt Receptacle Jam Nut Size 14 CONN RCPT 7X1.6 FEMALE JAM NUT 7 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts connector,plasticcirc,size14,jamnutrecept,for7size16socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 6+PEP Female 14, UTS7147S, Souriau Souriau 7路 面板安装 直向 连接器 插座 , 母触点
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
UTS7147SSCR
Souriau
Standard Circular Connector 7P Sckt Receptacle Jam Nut Size 14 CONN RCPT JAM NUT 7POS F SCREW 7 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts JamNutReceptacle Panel Mount Socket UTS Trim Trio UTS 7P Female 14, UTS7147SSCR, Souriau Souriau 7路 面板安装 直向 连接器 插座 , 母触点
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

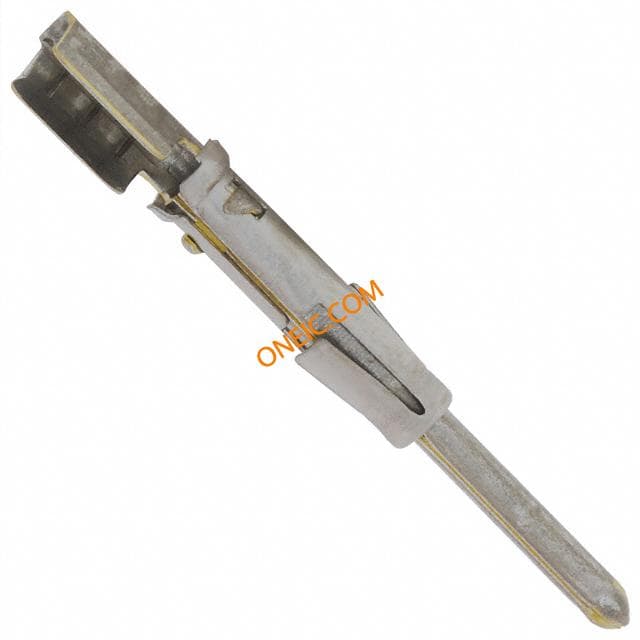

SM16ML-1TK6
