UTS6JC12E4S
| Manufacturer | |
| Description | Standard Circular Connector 4P STRAIGHT SOCKET PLUG SHELL SIZE 12E CONN PLUG 4POS W/BCKSHELL W/SCKT PLUG, UTS HI SEAL, 4WAY, SKT |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1636 |
| Standard Package | 100 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500V | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.035 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Shell Material | Thermoplastic | Insertion Angle | 12-4 |
| Material - Body | :Thermoplastic | Contact Material | :Copper |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Contact Termination | :Solder |
| Number of Positions | 4 | Shell Size - Insert | 12-4 |
| Shell Material, Finish | Thermoplastic | Contact Finish Thickness | 16µin (0.40µm) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Gender | :Plug | Series | UTS |
| Product Type | Plugs | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Similar Parts
UTS612CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Red CONN PLUG CODING RING SIZE12 RED CABLE PLUG COLOR CODING SIZE 12 - RED CODING RING, PLUG, RED connectoraccessory,uts-series,optionalcolorcodedring,plugsize12,red Coding ring, cable side size 12, UTS612CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 12
UTS612CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 12, Yellow CONN PLUG CODING RING SIZE12 YEL CABLE PLUG COLOR CODING SIZE 12 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,plugsize12,yellow Coding ring, cable side size 12, UTS612CCRY, Souriau Souriau 黄色 连接器环,适合外壳尺寸 12
UTS612DCG
Souriau
Standard Circular Connector Plug Sealing Cap Shell Size 12 CONN PLUG SEALING CAP SIZE 12 UTS CABLE PLUG DUSTCAP - SIZE 12 SEALING CAP, UTS CIRCULAR CONNECTOR connectoraccessory,uts-series,dustcapforsize12plug Cap for cable plug/socket size 12, UTS612DCG, Souriau
UTS612CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Green CONN PLUG CODING RING SIZE12 GRN CABLE PLUG COLOR CODING SIZE 12 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,plugsize12,green Coding ring, cable side size 12, UTS612CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 12
UTS712D4P
Souriau
Standard Circular Connector 4P JAM NUT PIN RECEPTACLE SIZE 12D CONN RCPT JAM NUT 4POS W/PIN PCB

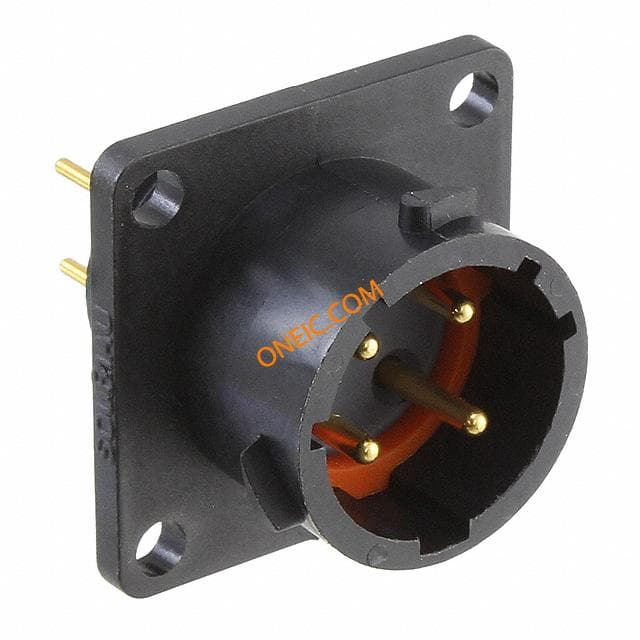

UTS012D4P
Souriau
Standard Circular Connector 4P SQ FLANGE PIN RECEPTACLE SIZE 12D CONN RCPT SQ FLNG 4POS W/PIN PCB

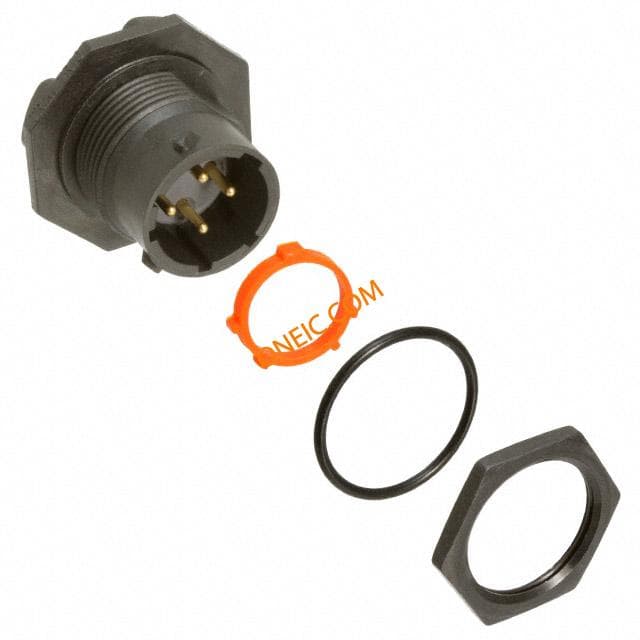

UTS712E4P
Souriau
Standard Circular Connector 4P JAM NUT PIN RECEPTACLE SIZE 12E CONN RCPT JAM NUT 4POS W/PIN CONNECTOR, CIRCULAR, RCPT, 4POS, PANEL

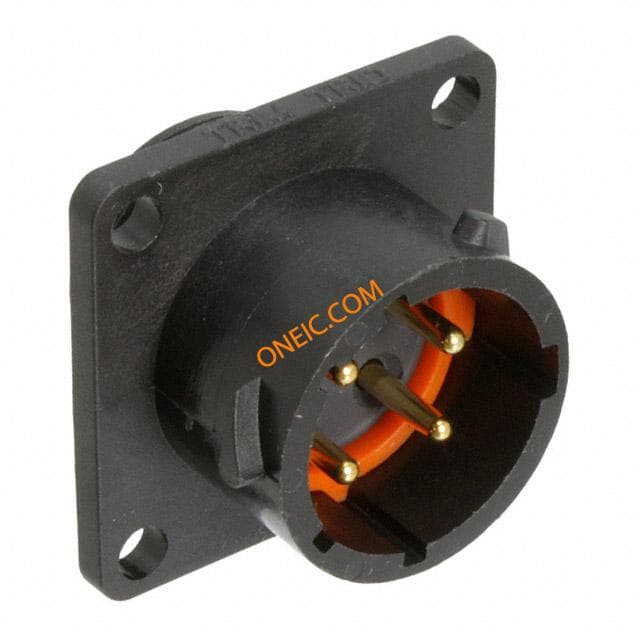

UTS012E4P
