点击放大查看
UTS6JC104S
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Trim Trio | Other Names | SOU1307 |
| Product Category | Standard Circular Connector | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 125 V ac | Number of Poles | 4 |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 10 | Diameter | 26.2 |
| Packaging | Bulk | Body Color | 63.2 |
| Cable Exit | No | Shell Size | 10 |
| Orientation | Keyed | Termination | Crimp |
| Contact Size | 16 | Contact Type | 4Signal |
| Mounting Type | Cable Mount | Cable End Type | 2.5...8 mm |
| Connector Type | Plug for Female Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Thermoplastic |
| Connector Style | straight | Insertion Angle | 10-4 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Thermoplastic | Length - Overall | 63.2 |
| Termination Rows | 压接 | Termination Style | Crimp Connection |
| 1st Contact Gender | SKT | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 10-4 |
| 1st Connector Gender | Female | Shell Material, Finish | Thermoplastic |
| Shell Size - Insert (Convert To) | 10-4 | ||
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | UTS |
| CAD Drawing | 3D CAD Model | Product Type | Plugs |
| Amplifier Type | 26.2 | ||
Environmental
| Seal Rating | IP68, IP69K | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
SC16ML1S31
Souriau
$4.0392
Details
UTS1JC104P
Souriau
$93.3842
Details
UTS610DCG
Souriau
$27.1800
Details
SC24ML-1TK6
Souriau
$1.9040
Details
RC16M23D28
Souriau
$49.2864
Details
SC16ML-1D70
Souriau
$4.8742
Details
UTS610CCRG
Souriau
$5.6474
Details
UTS610CCRR
Souriau
$27.8369
Details
SC20ML-1S6
Souriau
$11.6772
Details

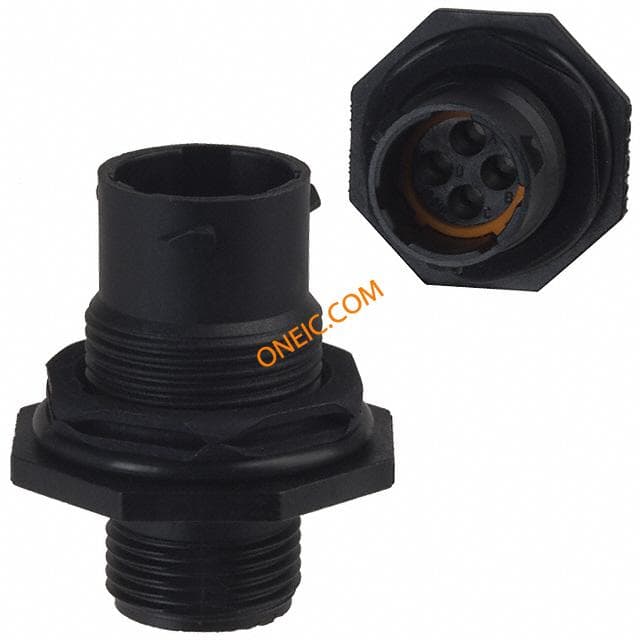

UTS7104P
