点击放大查看
UTS6JC103P
| Manufacturer | |
| Description | Standard Circular Connector 3P Straight Pin Plug Backshell Size 10 CONN PLUG CABLE 3X1.6 MALE 3 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts connector,plasticcirc,size10,strplugw/bkshl,for3size16pincont,sealed Coupling Plug UTS Trim Trio UTS 2+PEP Male 10, UTS6JC103P, Souriau Souriau 3路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1297 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250 V ac | Number of Poles | 2+PE |
| Current Rating (Max) | 13A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 10 | Packaging | Bulk |
| Body Color | 63.2 | Shell Size | 10 |
| Orientation | Keyed | Termination | Crimp |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Cable End Type | 2.5...8 mm |
| Connector Type | Plug for Male Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Wire | Shell Material | Thermoplastic |
| Connector Style | straight | Insertion Angle | 10-3 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Male |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | 10-3 | 1st Connector Gender | Male |
| Shell Material, Finish | Thermoplastic | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | UTS | CAD Drawing | 3D CAD Model |
| Product Type | Plugs | Amplifier Type | 26.2 |
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
UTS1JC103S
Souriau
Standard Circular Connector 3P Sckt Recept Sz 10 Cable Mnt Backshell CONN HSG RCPT 3POS INLINE FEMALE CIRCULAR CONNECTOR RCPT, SIZE 10, 3POS, CABLE Cable Socket Trim Trio UTS 2+PEP Female 10, UTS1JC103S, Souriau Souriau UTS 系列 3路 电缆安装 直向 圆形连接器 插座 , 母触点, 卡口式接合
UTS610DCG
Souriau
Standard Circular Connector Plug Sealing Cap Shell Size 10 CONN PLUG SEALING CAP SIZE 10 UTS CABLE PLUG DUSTCAP - SIZE 10 connectoraccessory,uts-series,dustcapforsize10plug Cap for cable plug/socket size 10, UTS610DCG, Souriau
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
UTS610CCRY
Souriau
Standard Circular Connector Plug Ring Size 10 Yellow Connector Accessories Color Coding Ring For Plug Yellow Shell Size 10 CONN PLUG CODING RING SIZE10 YEL CABLE PLUG COLOR CODING SIZE 10 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,plugsize10,yellow Coding ring, cable side size 10, UTS610CCRY, Souriau Souriau 黄色 连接器环,适合外壳尺寸 10
UTS610CCRG
Souriau
Standard Circular Connector Plug Ring Size 10 Green Connector Accessories Color Coding Ring For Plug Green Shell Size 10 CONN PLUG CODING RING SIZE10 GRN CABLE PLUG COLOR CODING SIZE 10 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,plugsize10,green Coding ring, cable side size 10, UTS610CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 10
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate

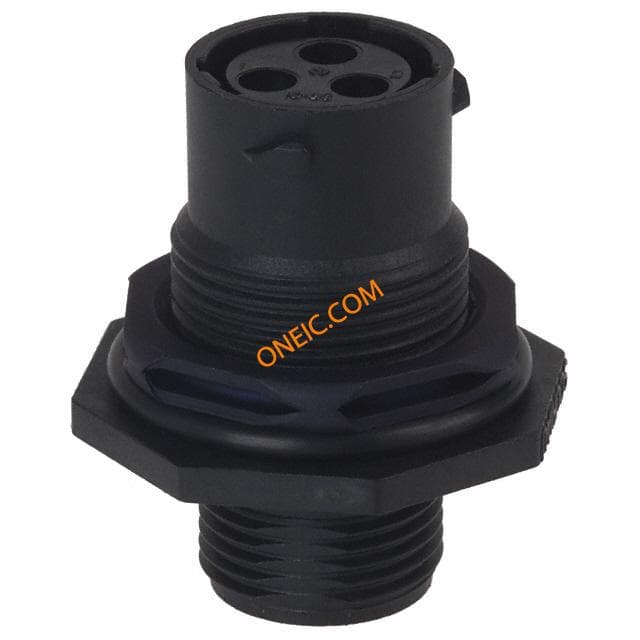

UTS7103S
