UTP62448P
| Manufacturer | |
| Description | Standard Circular Connector 48P Strt Pin Plug Shell Size 24 CONN PLUG CABLE MALE 48POS PLUG, FREE, 48WAY connector,circularplastic,strcableplug,size24,for48size16pincontact |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1170 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | :750V | Voltage - Working | :750V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.038 | Packaging | Bulk |
| Shell Size | 24 | Orientation | Keyed |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug for Male Contacts |
| Fastening Type | Bayonet Lock | Shell Material | Thermoplastic |
| Insertion Angle | 24-48 | Material - Body | :Glass Filled Thermoplastic |
| 1st Contact Gender | Without Pin Contacts | Color - Connectors | :Black |
| Mating Orientation | Bayonet | Number of Contacts | 48 |
| Number of Positions | 48 | Shell Size - Insert | 24-48 |
| Shell Material, Finish | Thermoplastic, Glass Filled | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | :Plug |
| Series | UTP | Product Type | Cable Plugs |
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | :125°C |
Documents & Media
Similar Parts
UTP02448S
Souriau
Standard Circular Connector 48P Sckt Receptacle Wall Mount Size 24 CONN RCPT FEMALE 48POS WALL MNT connector,plasticcircular,wallreceptacle,size24,for48size16socketcontact
UT072448SH
Souriau
Standard Circular Connector 48P Sckt Receptacle Jam Nut Size 24 Conn Metal Circular SKT 48 POS Crimp ST Jam Nut 48 Terminal 1 Port CONN RCPT FEMALE 48POS JAM NUT
UT002448SH
Souriau
Standard Circular Connector 48P Sckt Receptacle Wall Mount Size 24 CONN RCPT FEMALE 48POS WALL MNT
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
SM16M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 16-18AWG TIN CIRCULAR CONTACT, PIN, 16AWG, CRIMP Male #16 Stamped and formed crimp contact 2PCSTRIPHYFPIN#18-16
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SM16ML1S31
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 16 AWG Contact Sz 16 CONTACT PIN CRIMP 16-18AWG GOLD CONTACT, PIN, S&F, 16-18 AWG, PK 25 Contact;Pin;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp pin Male 18...16 AWG, SM16ML1S31, Souriau
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

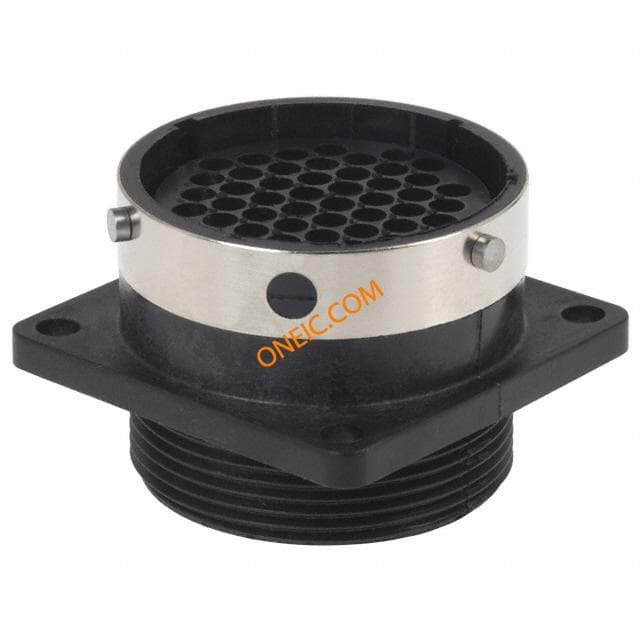

UTG0-24-48S
