UT062028PH
| Manufacturer | |
| Description | Standard Circular Connector 28P Strt Pin Plug Size 20 Conn Metal Circular PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS MALE PIN HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE PIN Cable plug UT0 28-pin Trim Trio UT0 28P Male 20, UT062028PH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 公触点, 卡口式接合 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1043 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | :2000V | Voltage Rating | 250 V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.03757 | Diameter | 37.5 mm |
| Packaging | Bag | Cable Exit | No |
| Shell Size | 20 | Orientation | N (Normal) |
| Termination | Crimp | Contact Form | 28Signal |
| Contact Size | 16 | Contact Type | 28Signal |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | Plug for Male Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Cable | Shell Material | Zinc Alloy |
| Insertion Angle | 20-28 | Material - Body | :Zinc Alloy |
| Length - Overall | 31.8 mm | 1st Contact Gender | Without Pin Contacts |
| Number of Contacts | 28 | Number of Positions | 28 |
| Shell Size - Insert | 20-28 | Shell Material, Finish | Zinc, Nickel Plated |
| 1st Connector Mounting Type | :Cable | Shell Size - Insert (Convert To) | 20-28 |
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | PL | Series | UT0 |
| Features | Shielded | Product Type | Cable Plugs |
| RF Family/Standard | UT0 | ||
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP 67 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
UT020JCS
Souriau
Standard Circular Connector Cable Clamp IP68 Shell Size 20 CONN CABLE CLAMP METAL #20 IP68 HOOD, IP68, SIZE 20 Strain relief size 20 11.5...18 mm, UT020JCS, Souriau
UT020AC
Souriau
Standard Circular Connector Cable Clamp Size 20 With Strain Relief CONN CABLE CLAMP METAL #20 HOOD, METAL, STRAIN RELIEF, SIZE 20 Souriau UT0 系列 尺寸20 电缆夹, 带应力消除, 使用于UT0-UT0W 系列圆形连接器
UT002028SH
Souriau
Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 CONN RCPT FEMALE 28POS WALL MNT CONNECTOR, CIRCULAR, RCPT, 28POS, PANEL Souriau UT0 系列 28路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合
UT072028SH
Souriau
Standard Circular Connector 28P Sckt Receptacle Jam Nut Size 20 CONN RCPT FEMALE 28POS JAM NUT
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

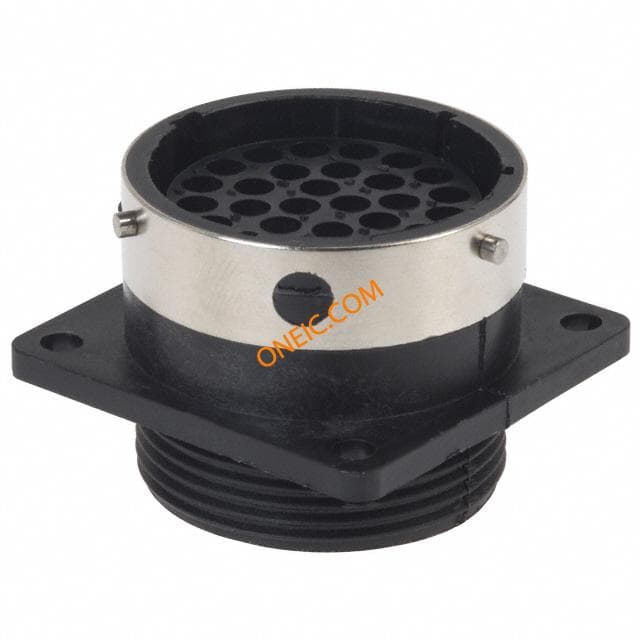

UTG020-28S
Souriau
Standard Circular Connector 28P Sckt Receptacle Wall Mount Size 20 Conn CPC With Metal Coupling SKT 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag CONN RCPT FEMALE 28POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size20,for28socket Female receptacle Trim Trio 28-pin Trim Trio UTG 28P Female 20, UTG020-28S, Souriau

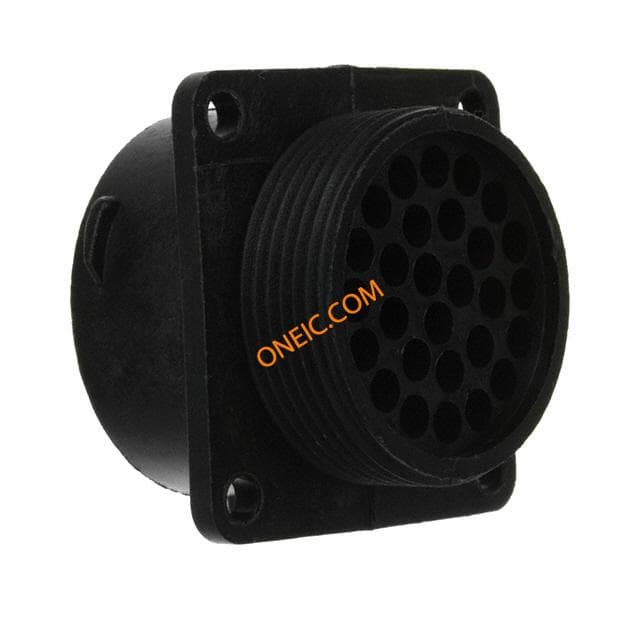

UTP02028S
