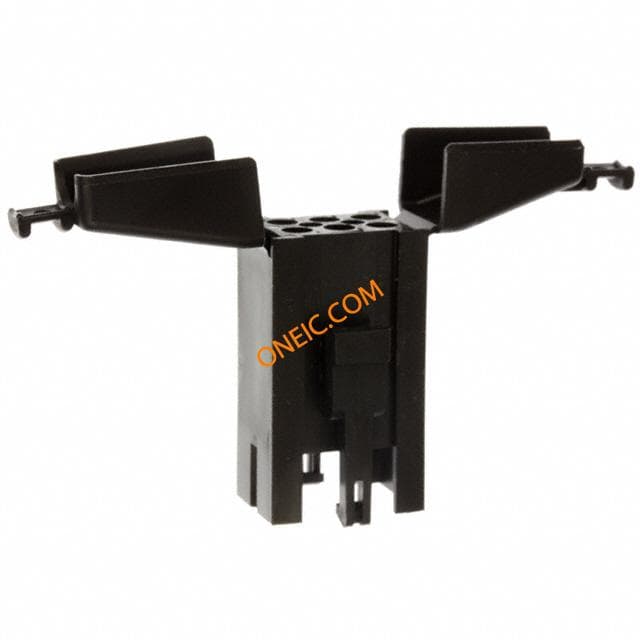

SMS6R1

Business

Other Names	SOU1203	Product Category	Headers & Wire Housings
Standard Package	100	Factory Pack Quantity	100

RoHS	Lead free / RoHS Compliant	EU RoHS	Compliant
Tariff No	85366910	Material Flammability Rating	:UL94V-2

Voltage Rating	2 kV	Switch Function	Latched
Current Rating (Max)	5 A

Depth	25 mm	Pitch	0.200" (5.08mm)
Weight	0.038	Material	:Polyamide
Row Spacing	0.200" (5.08mm)	Contact Type	Male or Female
Mounting Type	Straight	Connector Type	Receptacle
Contact Finish	Gold	Fastening Type	Locking Ramp
Mounting Style	Panel	Number of Rows	2
Panel Thickness	:2.3mm	Contact Material	Copper Alloy
Housing Material	Polyamide 6.6	Length - Overall	20.3 mm
1st Contact Gender	Socket (Female)	Color - Connectors	:Black
Number of Contacts	6	Panel Cutout Shape	:16.5x16.7mm
Contact Termination	Crimp	Number of Positions	6
Diameter - Outside, Non-Expanded	:8.1mm

Note	Contacts Not Provided	Type	Housing
Gender	RCP	Series	SMS
Product Type	Receptacles / Sockets - PCB	For Use With/Related Products	:SMS - Qikmate Panel and Cable Connectors
