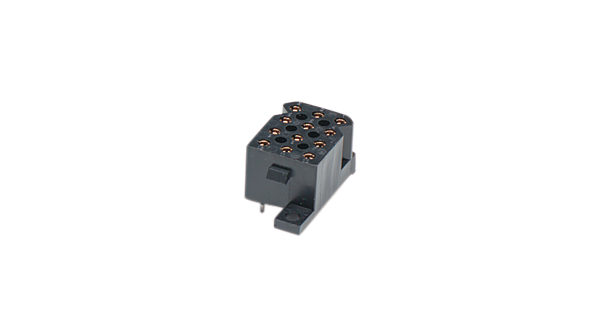

SMS24SE3K9
| Manufacturer | |
| Description | Conn Qikmate F 24 POS 5.08mm Solder ST Thru-Hole STR BRDMNT 24POS F PCB Headers & Wire Housings 24P Socket Straight Boardmount Female connector Pitch5.08 mm Poles 24 SMS-Qikmate, SMS24SE3K9, Souriau |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-2 | ||
Electrical
| Frequency | 31.2 | Capacitance | 15.2 |
| Voltage - Test | 2 | Voltage Rating | 500 |
| Number of Poles | 24 | Current Rating (Max) | 13 A |
| Insulation Resistance | 5000 MOhm | ||
Mechanical
| Color | Black | Depth | 21.2 |
| Pitch | 0.200" (5.08mm) | Height | 13.4 |
| Packaging | Bulk | Body Color | 39.4 |
| Row Spacing | 0.200" (5.08mm) | Termination | Solder |
| Contact Type | Female Socket | Mounting Type | Through Hole |
| Connector Type | Receptacle | Contact Finish | Gold |
| Fastening Type | Locking Ramp | Number of Rows | 6 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 45.2 | Termination Style | Through Hole |
| 1st Contact Gender | F | Diameter - Outside | 13.4 |
| Number of Contacts | 24 | Number of Positions | 24 |
| 1st Connector Gender | Female | Contact Finish Thickness | 16µin (0.40µm) |
Product Info
| Type | Qikmate | Series | * |
| Features | Mounting Flange | Amplifier Type | 21.2 |
| Connection Method | Wire-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55...+105 °C | ||
