JBXPC2G10FSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P Socket Recept Cable Mt Solder Sz 2 IN LINE RCPT 10POS FML SOLDER CableReceptaclesize2 |
| Category |
Business
| Tradename | JBX | Other Names | SOU1789 |
| Product Category | Circular Push Pull Connectors | Standard Package | 25 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 8A |
Mechanical
| Packaging | Bulk | Shell Size | 2 |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Termination Style | Solder |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXFD2G10MCSDSMR
Souriau
Circular Push Pull Connectors 10P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 10 POS Crimp ST Cable Mount 10 Terminal 1 Port CONN PLUG 10POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,CRIMP
JBXFC2G10MCSDSMR
Souriau
Circular Push Pull Connectors 10P R/A Pin Plug Crimp Shell Size 2 RA PLUG 10POS MALE CRIMP BOOT BN JBXPLUGFC

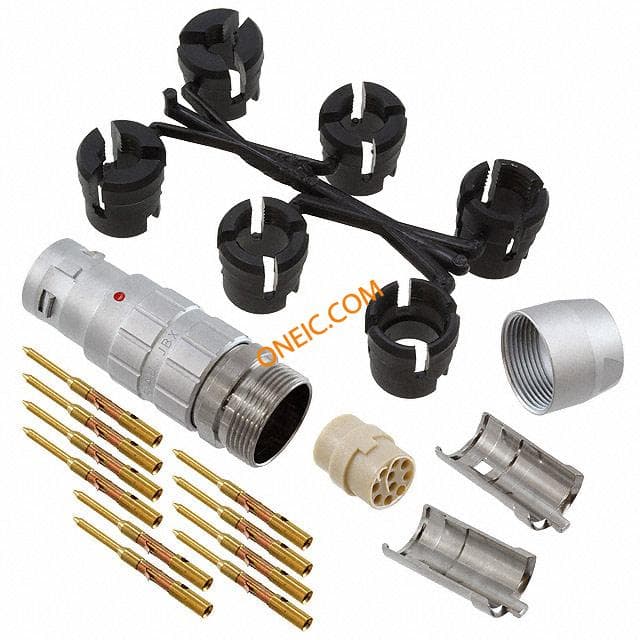

JBXFD2G10MCSDSR
Souriau
Circular Push Pull Connectors 10P Strt Pin Plug Crimp Shell Size 2 CONN PLUG 10POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,CRIMP24-20

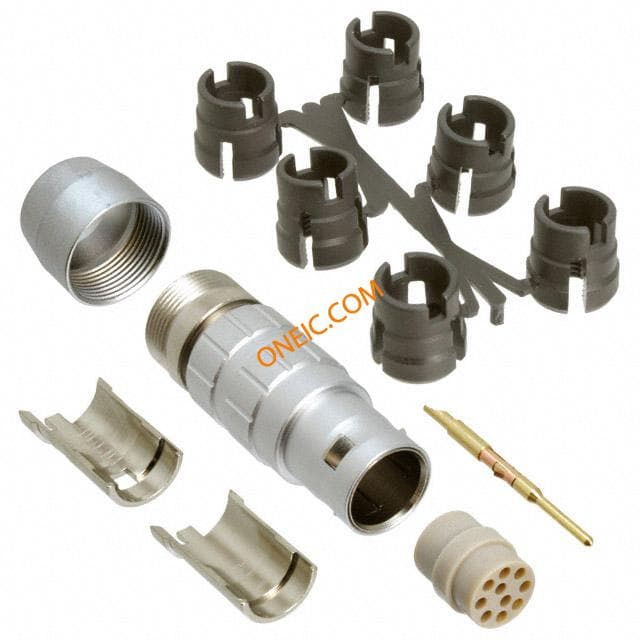

JBXFD2G10MSSDSR
