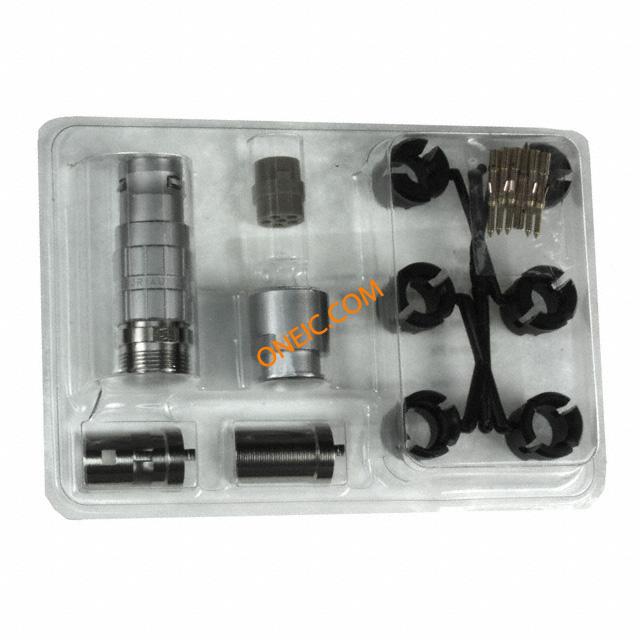

JBXFD2G06MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 6 POS Crimp ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS STRAIGHT CRIMP JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1569 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 900VDC | Current Rating (Max) | 12A |
Mechanical
| Diameter | 15 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 2 |
| Wire Gauge | 18 | Orientation | G |
| Shell Style | Plug | Termination | Crimp |
| Contact Type | 6Signal | Mounting Type | Cable Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Hybrid |
| Contact Material | Brass | Length - Overall | 52 |
| Termination Style | Crimp | 1st Contact Gender | M |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXER2G06FSSDSR
Souriau
Circular Push Pull Connectors 6P Socket Receptacle Solder Panel Mt Sz 2 CONN RCPT 6POS PANEL MT SOLDER JBXrecept2-06red
JBX2MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Black Connector Accessories Protective Boot Elastollan Black Shell Size 2 CONN BOOT PROTECTIVE SIZE 2 BLK CIRCULARPUSHPULLCONNECTOR,PROTECTIVEBOOT,BLACK
JBX2MPA
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Blue CONN BOOT PROTECTIVE SIZE 2 BLUE 335D7023F5

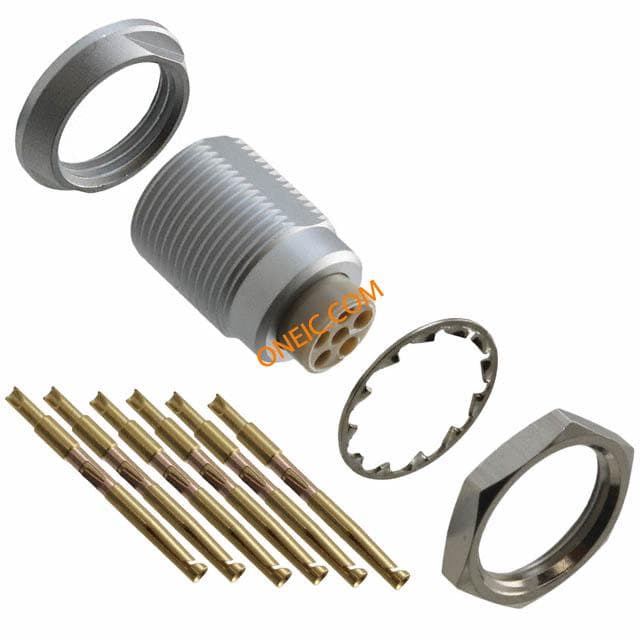

JBXEA2G06FSSDS
