JBXFD1G07MSSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 7P Strt Pin Plug Solder Shell Size 1 Conn Push-Pull M 7 POS Solder ST Cable Mount 7 Terminal 1 Port CONN PLUG 7POS STRAIGHT SOLDER JBXPLUGFD |
| Category |
Business
| Other Names | SOU1557 | Product Category | Circular Push Pull Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | Yes | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 7A |
Mechanical
| Diameter | 12 mm | Packaging | Bulk |
| Cable Exit | No | Orientation | G |
| Shell Style | Plug | Termination | Solder |
| Contact Form | 7Signal | Contact Type | 7Signal |
| Mounting Type | Cable Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Contact Material | Brass | Length - Overall | 45 mm |
| 1st Contact Gender | M | Number of Contacts | 7 |
| Number of Positions | 7 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | RF Family/Standard | JBX |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXEA1G07FQSDS
Souriau
Circular Push Pull Connectors 7P Socket Receptacle R/A PCB Tail Size 1 Conn Push-Pull F 7 POS Solder ST Panel Mount 7 Terminal 1 Port DBL NUT RCPT 7POS FEMALE RA PCB JBXRECEPTACLEEA
JBXEA1G07FPSDS
Souriau
Circular Push Pull Connectors 7P Socket Receptacle Strt PCB Shell Sz 1 CONN RCPT 7POS DBL NUT SKT SLD JBXRECEPTACLEEA

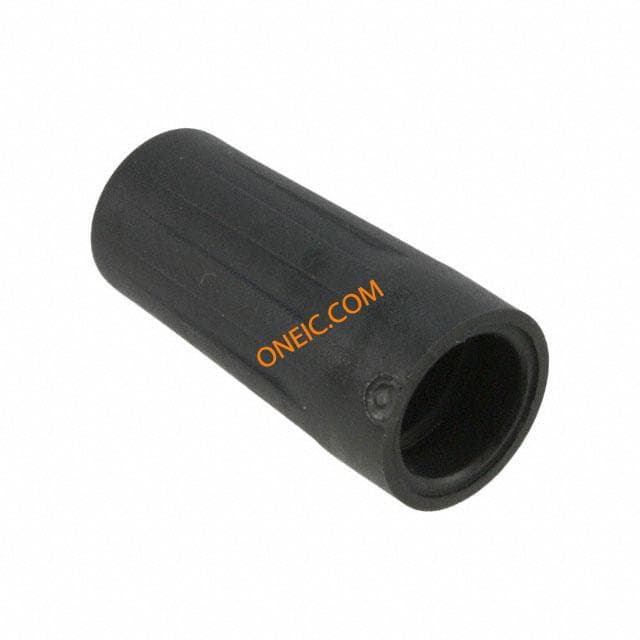

JBX1MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 1, Black Connector Accessories Protective Boot Elastollan Black Shell Size 1 CONN BOOT PROTECTIVE SIZE 1 BLK CIRCULARPUSHPULLCONNECTOR,JBXBOOTBLACK
JBXER1G07FSSDSR
Souriau
Circular Push Pull Connectors 7P Socket Receptacle Solder Panel Mt Sz 1 CONN RCPT 7POS FRONT MNT SOLDER CIRCULARPUSHPULLCONNECTOR,RCPT,SHELL1,P7,SOLDER,26-24

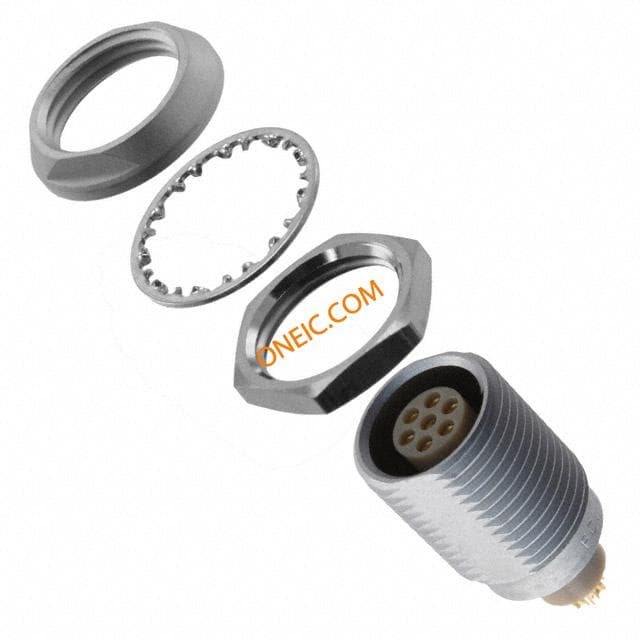

JBXEA1G07FSSDS
