JBXEA2G10FSSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P Socket Recept Solder Shell Size 2 Conn Push-Pull SKT 10 POS Solder ST Panel Mount 10 Terminal 1 Port Blister CONN RCPT 10POS DBL NUT SKT SLD JBXRECEPTACLEEA |
| Category |
Business
| Other Names | SOU1824 | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 8A |
Mechanical
| Diameter | 20 | Packaging | Blister |
| Cable Exit | No | Orientation | G |
| Termination | Solder | Contact Type | 10Signal |
| Mounting Type | Panel Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Contact Material | Copper Nickel |
| Length - Overall | 24 | 1st Contact Gender | SKT |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | RCP |
| Features | Shielded | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Similar Parts
JBXFD2G10MCSDSMR
Souriau
Circular Push Pull Connectors 10P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 10 POS Crimp ST Cable Mount 10 Terminal 1 Port CONN PLUG 10POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,CRIMP
JBXFC2G10MCSDSMR
Souriau
Circular Push Pull Connectors 10P R/A Pin Plug Crimp Shell Size 2 RA PLUG 10POS MALE CRIMP BOOT BN JBXPLUGFC

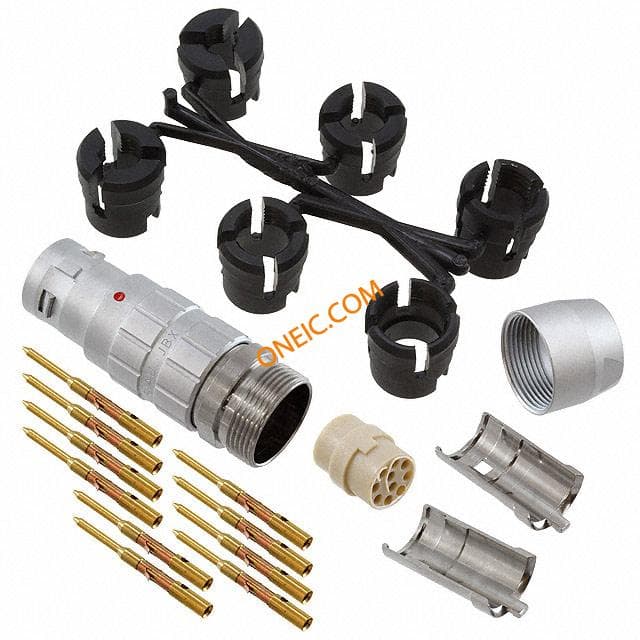

JBXFD2G10MCSDSR
Souriau
Circular Push Pull Connectors 10P Strt Pin Plug Crimp Shell Size 2 CONN PLUG 10POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,CRIMP24-20

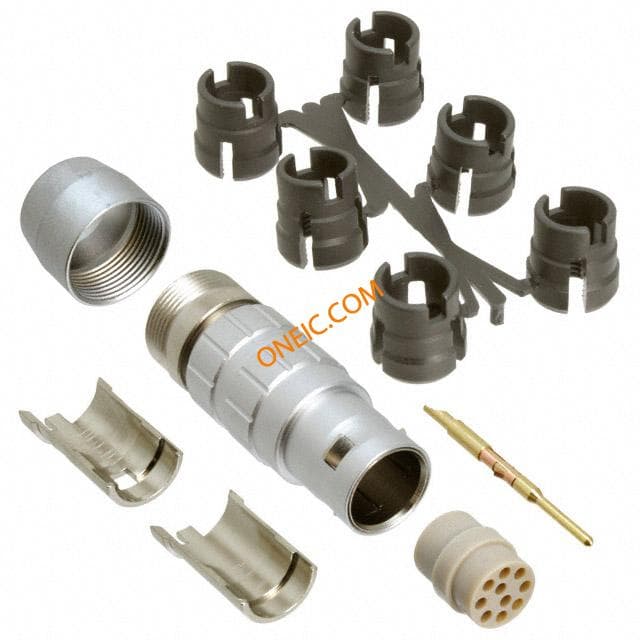

JBXFD2G10MSSDSR
