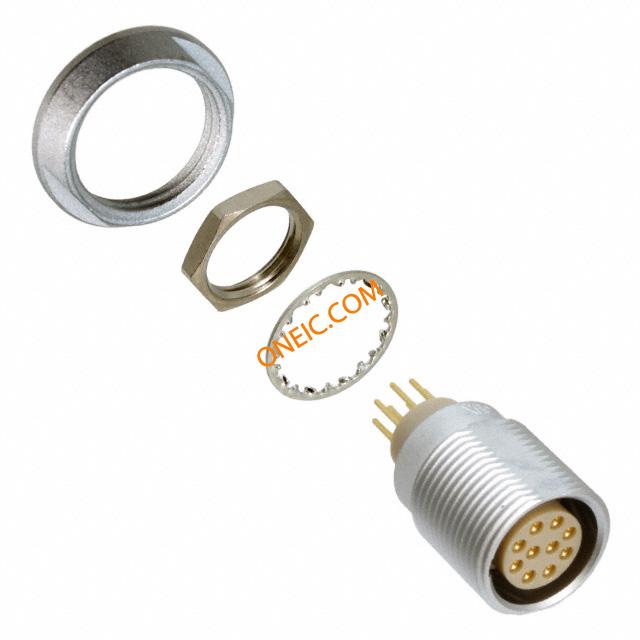

JBXEA2G10FPSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P Socket Recept Strt PCB Shell Sz 2 Conn Push-Pull F 10 POS Solder ST Panel Mount 10 Terminal 1 Port CONN RCPT 10POS DBL NUT SKT SLD JBXRECEPTACLEEA |
| Category |
Business
| Tradename | JBX | Other Names | SOU1823 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 8A |
Mechanical
| Diameter | 20 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 2 |
| Wire Gauge | 24 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 10Signal | Mounting Type | Panel Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Hybrid |
| Contact Material | Copper Nickel | Length - Overall | 24 |
| Termination Style | Solder | 1st Contact Gender | F |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
