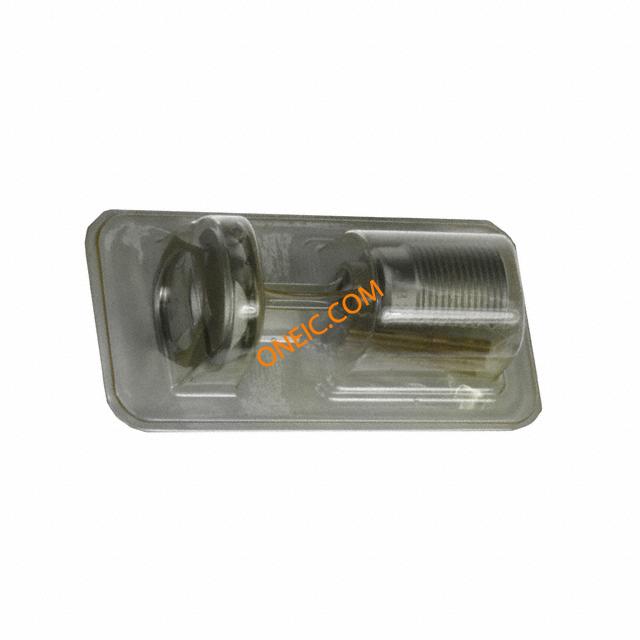

JBXEA2G04FCSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 4P Socket Receptacle Crimp Shell Size 2 Conn Push-Pull SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Blister CONN RCPT 4POS DOUBLE NUT CRIMP JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1602 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 1000VDC | Current Rating (Max) | 15A |
Mechanical
| Diameter | 20 | Packaging | Blister |
| Cable Exit | No | Orientation | G |
| Shell Style | Receptacle | Termination | Crimp |
| Contact Type | 4Signal | Mounting Type | Panel Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Contact Material | Copper Nickel | Length - Overall | 24 |
| 1st Contact Gender | SKT | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
