JBXEA1G08FSSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 8P Socket Receptacle Solder Shell Size 1 Conn Push-Pull SKT 8 POS Solder ST Panel Mount 8 Terminal 1 Port Blister CONN RCPT 8POS DOUBLE NUT SOLDER JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1598 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | Yes | ||
Electrical
| Voltage Rating | 600VDC | Current Rating (Max) | 5A |
Mechanical
| Diameter | 16 mm | Packaging | Blister |
| Cable Exit | No | Shell Size | 1 |
| Wire Gauge | 22 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder |
| Contact Form | 8Signal | Contact Type | 8Signal |
| Mounting Type | Panel Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Hybrid | Contact Material | Copper Nickel |
| Length - Overall | 21 mm | Termination Style | Solder |
| 1st Contact Gender | SKT | Number of Contacts | 8 |
| Number of Positions | 8 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | RF Family/Standard | JBX |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts

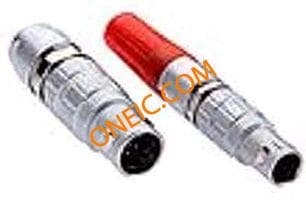

JBXFD1G08MSSDSR
