点击放大查看
UT06128PH
| Manufacturer | |
| Description | CONN PLUG CABLE 8POS MALE Standard Circular Connector 8P Strt Pin Plug Size 12 CIRCULAR CONNECTOR, PLUG, 12-8, CABLE CONN HSG PLUG 8POS INLINE PIN connector,metalcircular,strplug,for8size16pincontact,ip68/ip69ksealing Cable plug UT0 8-pin Trim Trio UT0 8P Male 12, UT06128PH, Souriau |
| Category |
Business
| Tradename | Trim Trio | Product Category | Standard Circular Connector |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | :2000V | Voltage Rating | 250 V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.01781 | Packaging | Bulk |
| Shell Size | 12 | Orientation | N (Normal) |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Plug for Male Contacts | Fastening Type | Bayonet Lock |
| Shell Material | Zinc Alloy | Insertion Angle | 12-8 |
| Material - Body | :Zinc Alloy | 1st Contact Gender | Without Pin Contacts |
| Number of Contacts | 8 | Number of Positions | 8 |
| Shell Size - Insert | 12-8 | Shell Material, Finish | Zinc, Nickel Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Gender | :Plug |
| Series | UT0 | Features | Shielded |
| Product Type | Cable Plugs | ||
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP69K |
| Ingress Protection | IP67/69K - Dust Tight, Waterproof | Operating Temperature | :+105°C |
Documents & Media
Similar Parts
UT07128SH
Souriau
Standard Circular Connector 8P Sckt Receptacle Jam Nut Size 12 Conn Metal Circular SKT 8 POS Crimp ST Jam Nut 8 Terminal 1 Port CONN RCPT FEMALE 8POS JAM NUT RECEPTACLE, FEMALE, SIZE12, 8WAY connector,metalcirc,jamnutrecept,for8size16socketcont,ip68/ip69sealing Souriau 8路 面板安装 连接器 插座 ,母触芯, 外壳尺寸12
UT00128SH
Souriau
Standard Circular Connector 8P Sckt Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MNT UTO0128SH female square flange receptacle, IP67 and 48h salt spray connector,metalcirc,wallrecept,for8size16socketcont,ip68/ip69ksealing
UT012AC
Souriau
Standard Circular Connector Cable Clamp Size 12 With Strain Relief Connector Accessories Metal Cable Clamp With Strain Relief Shell Size 12 CONN CABLE CLAMP METAL #12 HOOD, METAL, STRAIN RELIEF, SIZE 12 UTO-UTOW cable clamp,strain relief,
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

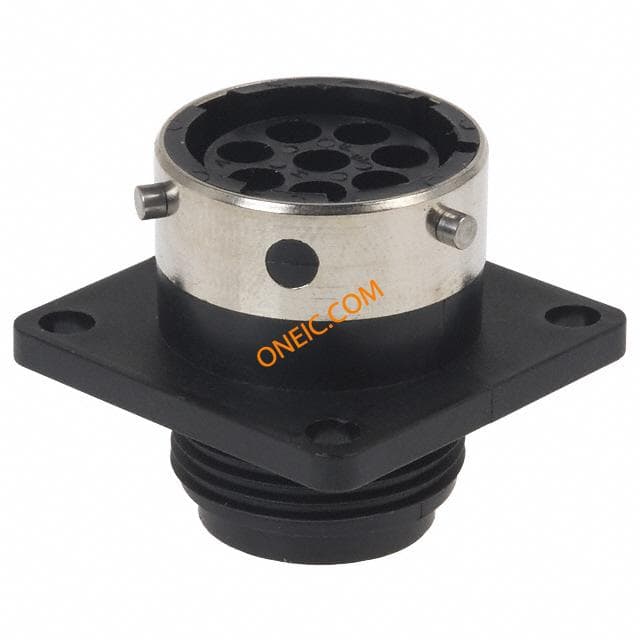

UTG012-8S
Souriau
Standard Circular Connector 8P Socket Receptacle Wall Mount Size 12 CONN RCPT FEMALE 8POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size12,for8socket CONN HSG RCPT 8POS WALL MNT SKT Female receptacle Trim Trio 8-pin Trim Trio UTG 8P Female 12, UTG012-8S, Souriau
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

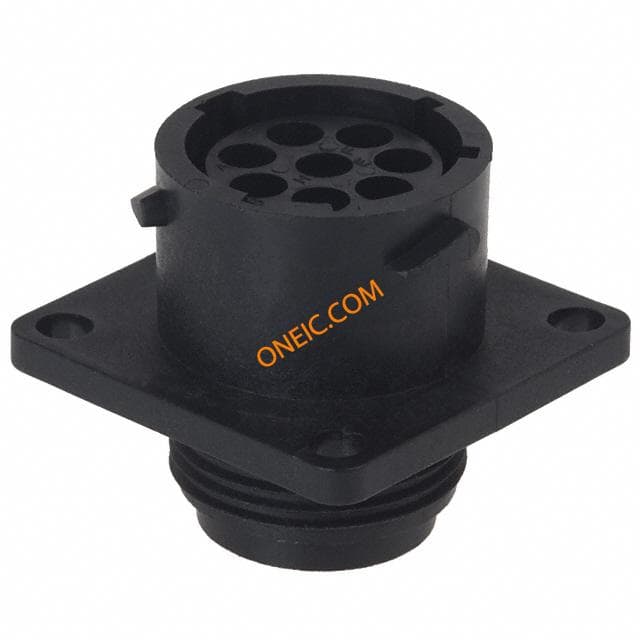

UTP0128S
Souriau
Standard Circular Connector 8P Socket Receptacle Wall Mount Size 12 Conn CPC SKT 8 POS ST Wall Mount 8 Terminal 1 Port CONN RCPT FEMALE 8POS WALL MNT 8 Way Female Wall Mount Connector,Female Contacts,Shell Size 12 SOCKET, PANEL MOUNT, 8WAY connector,plasticcircular,wallreceptacle,size12,for8size16socketcontact Souriau 8路 壁挂式 连接器 卡口耦合 插座 ,母触芯, 外壳尺寸12
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

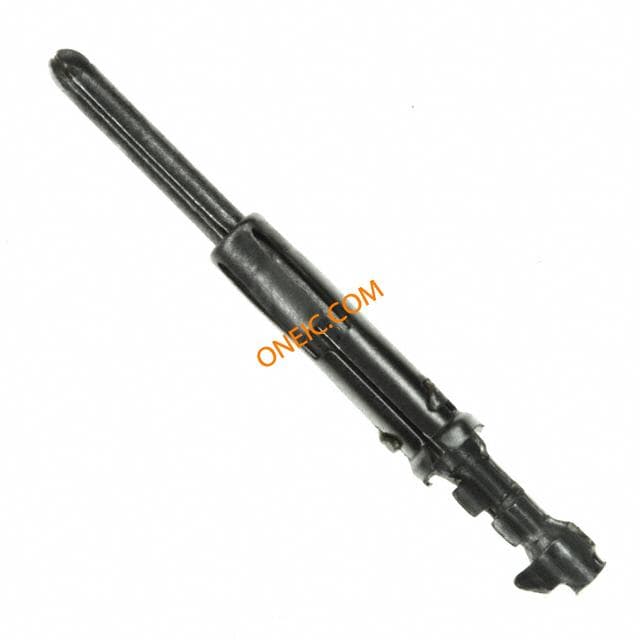

SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts

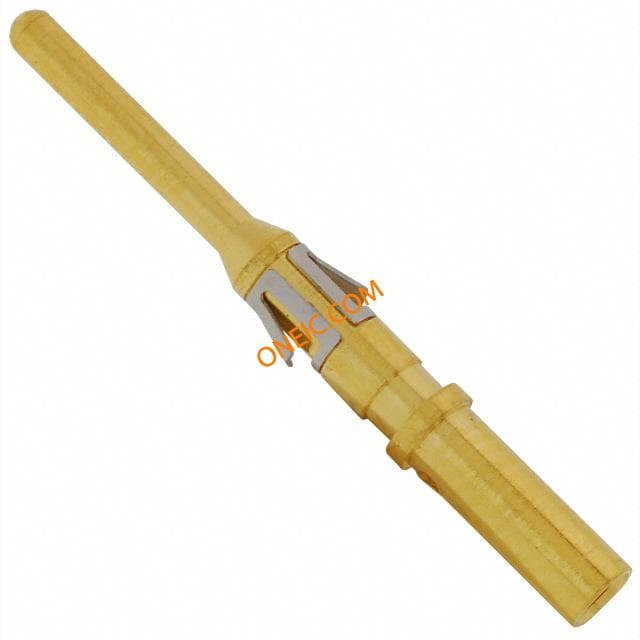

RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD

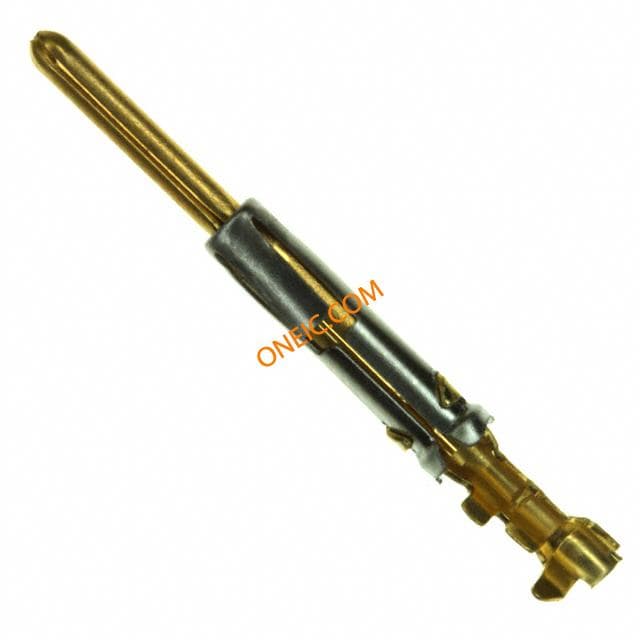

SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20

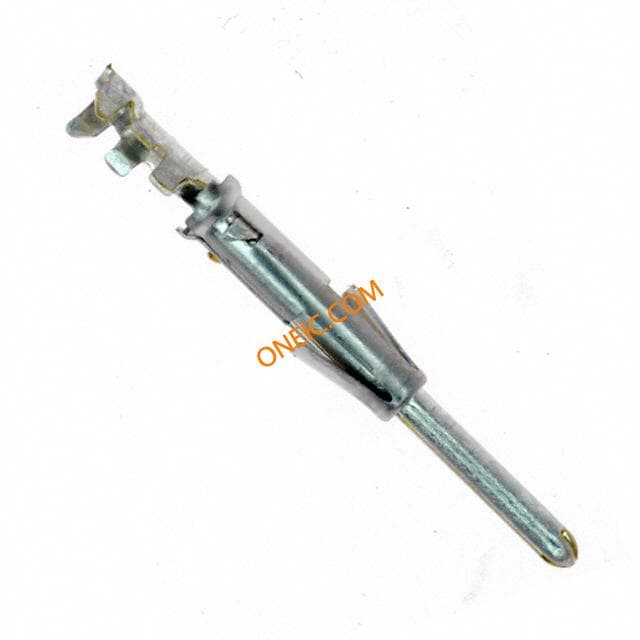

SM20ML-1TK6
