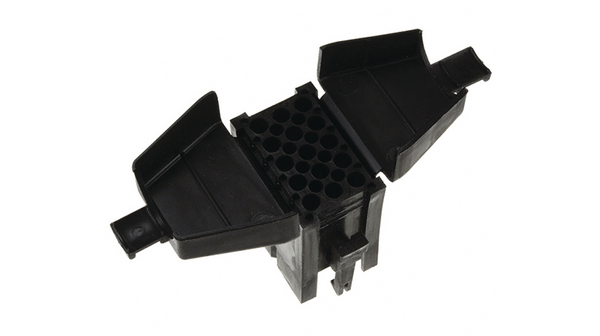

SMS15PDH1
| Manufacturer | |
| Description | CONN PLUG 15POS CABLE W/SR HOOD Headers & Wire Housings 15P Cable Plug Sz 16 Strain Relief Hood PLUG, CABLE, STRAIN RELIEF, 15WAY Crimp housing, Trim Trio 5.08 mm Poles 15 SMS-Qikmate, SMS15PDH1, Souriau Souriau SMS 系列 5 行 15 路 直 公 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Other Names | SOU1230 | Product Category | Headers & Wire Housings |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | No | Tariff No | 85369010 |
Electrical
| Switch Function | Latched | ||
Mechanical
| Pitch | 0.200" (5.08mm) | Weight | 0.013 |
| Row Spacing | 0.200" (5.08mm) | Contact Type | Male or Female |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Fastening Type | Latch Lock | Number of Rows | 3 |
| Housing Material | Polyamide (PA) | Number of Contacts | 15 |
| Contact Termination | Crimp | Number of Positions | 15 |
Product Info
| Note | Contacts Not Provided | Gender | :Plug |
| Series | SMS | Features | Strain Relief |
| Product Type | Plugs - Housings | For Use With/Related Products | :SMS - Qikmate Panel and Cable Connectors |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
Documents & Media
Similar Parts
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格
SC24M1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG TIN Pin & Socket Connectors Trim Trio Socket 24 AWG Contact Sz 16 CIRCULAR CONTACT, SKT, 26-24AWG, CRIMP tapeandreelcontacts
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SC20M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG GOLD
SC14M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 14AWG GOLD
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts
SC20M-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG TIN tapeandreelcontacts
SC24M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG GOLD

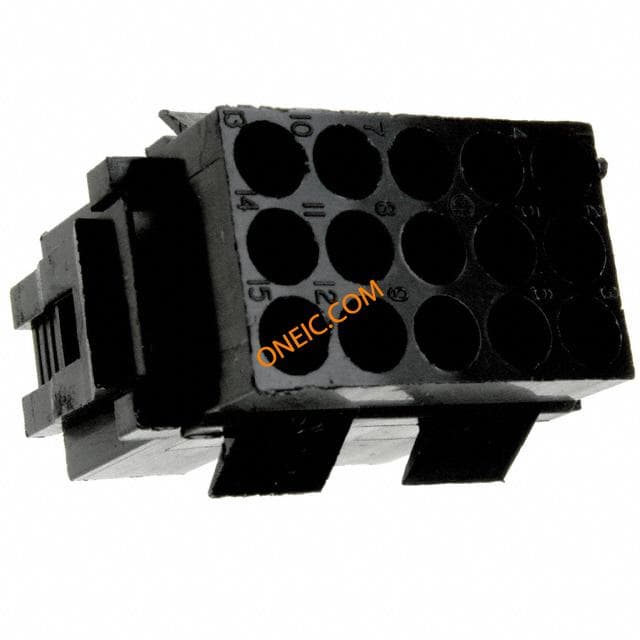

SMS15R1
SOURIAU
Conn Housing RCP 15 POS Crimp ST Panel Mount CONN RCPT 15POS PANEL MOUNT Headers & Wire Housings 15P Panel Mnt Recept Souriau SMS 系列 5 行 15 路 直 母 面板安装 PCB 连接器外壳
SC14ML-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;GoldFlashAll

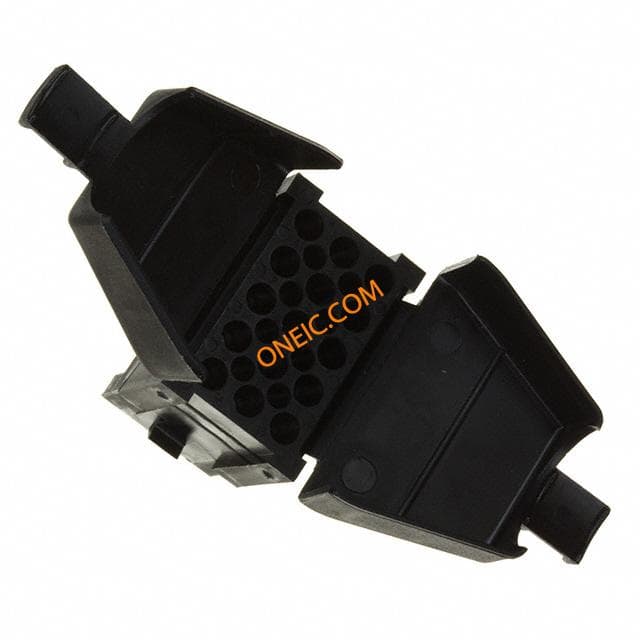

SMS15RDH1
