点击放大查看

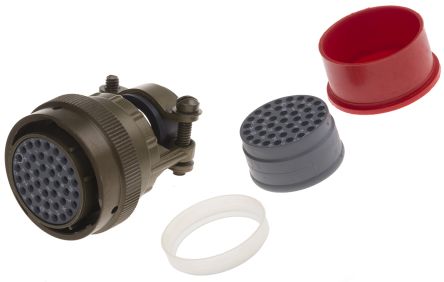

85106EC2041S50
| Manufacturer | |
| Description | CONN PLUG 41POS STRAIGHT W/SCKT 41 Way Male Cable Mount Connector,Female Contacts,Shell Size 20,MIL-DTL-26482 PLUG WITH CABLE, CLAMP, 41WAY Souriau 41路 电缆安装 连接器 卡口耦合 插头 ,母触芯, 外壳尺寸20, MIL-DTL-26482 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | S85106EC2041S50 | Standard Package | 1 |
Compliance
| RoHS | Non Compliant | Tariff No | 85369010 |
| Military Standard | MIL-DTL-26482 | ||
Electrical
| Contact Resistance | :5ohm | Current Rating (Max) | 7.5A |
| Insulation Resistance | :5000ohm | ||
Mechanical
| Weight | 0.07399 | Packaging | Bulk |
| Shell Size | 20 | Orientation | N (Normal) |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Olive Drab Cadmium | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Insertion Angle | :20-41 | Material - Body | :Aluminium |
| Contact Material | Copper Alloy | 1st Contact Gender | Female |
| Number of Contacts | 41 | Contact Termination | :Solder |
| Number of Positions | 41 | Shell Size - Insert | 20-41 |
| Shell Material, Finish | Olive Drab Cadmium Plated | 1st Connector Mounting Type | :Cable |
| Contact Finish - Post (Mating) | :pre tininng or gold | ||
Product Info
| Gender | Male | Series | :- |
| Features | Cable Clamp | ||
Environmental
| Mating Cycles | :500 | Operating Temperature | -55°C ~ 125°C |
