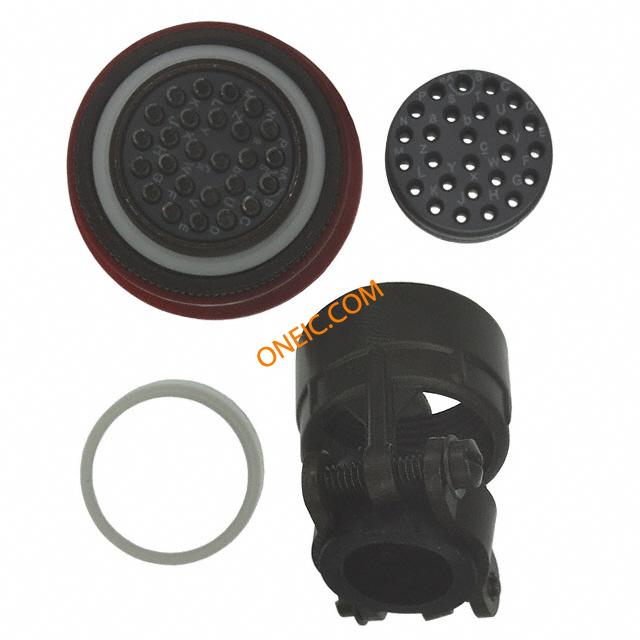

85106EC1626S50

Manufacturer	SOURIAU SAS
Description	CONN PLUG 26POS STRAIGHT W/SCKT CONN PLUG STRAIGHT 26POS W/SCKT PLUG WITH CABLE, CLAMP, 26WAY
Category	Connector SolutionsCircular ConnectorsStandard Circular Connectors

对参数有疑问？问 AI 助手

Business

Other Names

S85106EC1626S50

Standard Package

Compliance

RoHS

Contains lead / RoHS non-compliant

Tariff No

85369010

Electrical

Contact Resistance	:5ohm	Current Rating (Max)	7.5A
Insulation Resistance	:5000ohm

Mechanical

Weight	0.04	Packaging	Bulk
Orientation	N (Normal)	Termination	Solder
Mounting Type	Free Hanging (In-Line)	Connector Type	Plug, Female Sockets
Contact Finish	Gold	Fastening Type	Bayonet Lock
Insertion Angle	:16-26	Material - Body	:Aluminium
Contact Material	:Copper	1st Contact Gender	:Socket
Number of Contacts	:26	Contact Termination	:Solder
Number of Positions	26	Shell Size - Insert	16-26
Shell Material, Finish	Olive Drab Cadmium Plated	1st Connector Mounting Type	:Cable
Contact Finish - Post (Mating)	:pre tininng or gold

Product Info

Gender	:Plug	Series	:851
Features	Cable Clamp

Environmental

Mating Cycles

:500

Operating Temperature

-55°C ~ 125°C

Documents & Media

PDF Document

851 Series Catalog

PDF Document

851 Series

PDF Document

Catalog851_WIND851CA03ENFR.pdf
