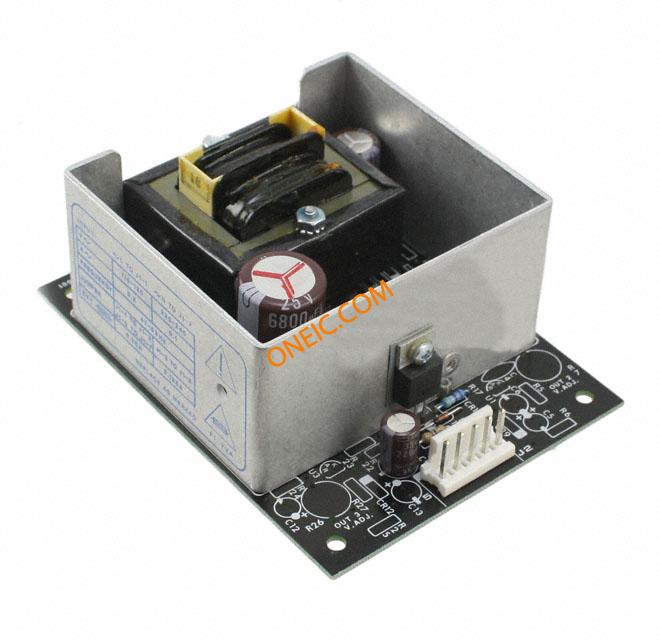

ML5-1-OV-A
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 5V 1A AC/DC CONVERTER 5V 5W PowerSupply;Linear;Medical;5V;1.0A |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 112 Days | Subcategory | AC to DC Power Supply |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free by exemption / RoHS compliant by exemption | Approval Agency | CE, CSA, TUV, UL |
Electrical
| Output | 5VDC@1A | Frequency | 47 to 63 Hz |
| Operation | Linear | Efficiency | 45 % |
| Power (Watts) | 5W | Power - Output | 5W |
| Voltage Rating | 100|120|240|215 V | Line Regulation | ±0.05% |
| Load Regulation | ±0.05% | Current - Output | 1 A |
| Number of Outputs | 1 | Power Supply Type | Linear, Regulated (Open Frame) |
| Power (Watts) - Max | 5W | Voltage - Input (Min) | 5V |
Mechanical
| Mounting Type | Chassis Mount | Mounting Style | Panel |
| Primary Material | AC-DC | Size / Dimension | 4.25" L x 3.25" W x 1.70" H (180.0mm x 82.6mm x 43.2mm) |
Product Info
| Type | Regulated Linear | Features | 3-YearsWarranty,RemoteSense |
| Applications | Medical | Manufacturer | MLSeries |
| Configuration | Open-Frame | ||
Environmental
| Operating Temperature | 0 to 50 °C | ||
