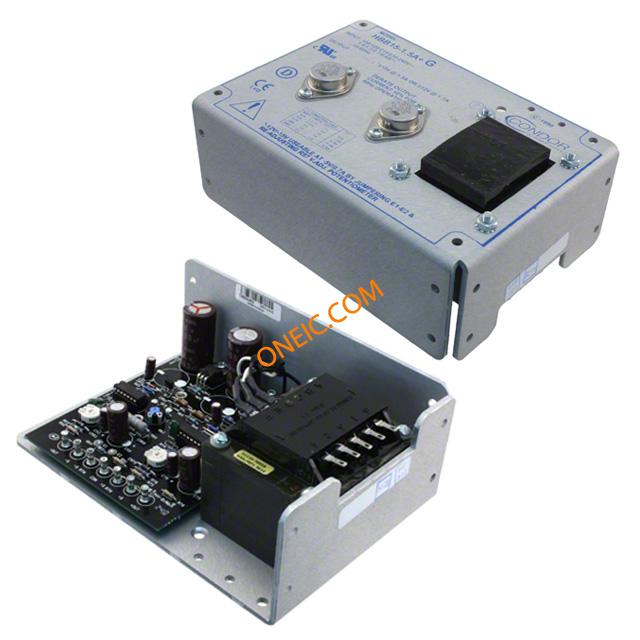

HBB15-1.5-A+G
| Manufacturer | |
| Description | AC/DC Power Supply Dual-OUT 12V to 15V/-12V to -15V 1.7A/1.7A Case BB AC/DC CONVERTER +/-12V 41W PowerSupply;AC-DC;15V@1.5A,-15V@1.5A;100-240VIn;OpenFrame;Linear;HBBSeries |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 271-2280 | Standard Package | Bulk |
| Standard Package Name | Case BB | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, TUV, UL | ||
Electrical
| Output | 15VDC@1.5A,-15VDC@1.5A | Frequency | 47 to 63 Hz |
| Operation | Linear | Power (Watts) | 41W |
| Power - Output | 45W | Voltage Rating | 100|120|240|215 V |
| Line Regulation | ±0.05% | Load Regulation | ±0.05% |
| Current - Output | 1.7|1.7 A | Number of Outputs | 2 |
| Power Supply Type | Linear, Regulated (Open Frame) | Power (Watts) - Max | 41W |
| Voltage - Input (Min) | 12V, -12V | ||
Mechanical
| Mounting Type | Chassis Mount | Mounting Style | Panel |
| Package Quantity | Case BB | Primary Material | AC-DC |
| Size / Dimension | 7.00" L x 4.88" W x 2.50" H (177.8mm x 124.0mm x 63.5mm) | ||
Product Info
| Type | Regulated Linear | Style | Open Frame |
| Features | RemoteSense | Applications | Commercial |
| Manufacturer | HBBSeries | Configuration | OpenFrame |
Environmental
| Operating Temperature | 0 to 50 °C | ||
