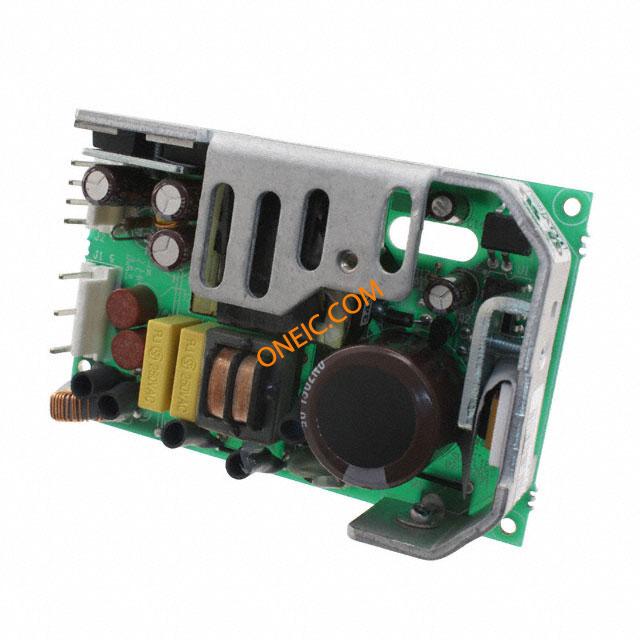

GSM28-24
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 1.2A 28W 7-Pin PS MEDICAL 28 W 24 VOLT 1.2 A PowerSupply,Switcher;28W;Single;24V;1.2A;85to264VAC;0.85A; |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 271-1123 | Standard Package | 1 |
Compliance
| RoHS | RoHS non-compliant | EU RoHS | Not Compliant |
| Approval Agency | CE, EN, TUV, UL | ||
Electrical
| Frequency | 47 to 63 | Efficiency | 70% |
| Power - Max | 28 | Power (Watts) | 28W |
| Voltage Rating | 24 | Load Regulation | 0.75% |
| Current - Output | 24 VDC @ 1.2A | Number of Outputs | 1 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 28W |
| Voltage - Input (Min) | 24V | ||
Mechanical
| Mounting Type | Chassis Mount | Size / Dimension | 4.00" L x 2.59" W x 0.92" H (101.6mm x 65.8mm x 23.4mm) |
| Number of Positions | 7 | ||
Product Info
| Type | Switching | Style | Medical Open Frame |
| Applications | Medical | ||
Environmental
| Operating Temperature | 0°C ~ 50°C | ||
Documents & Media
PDF Document
