点击放大查看

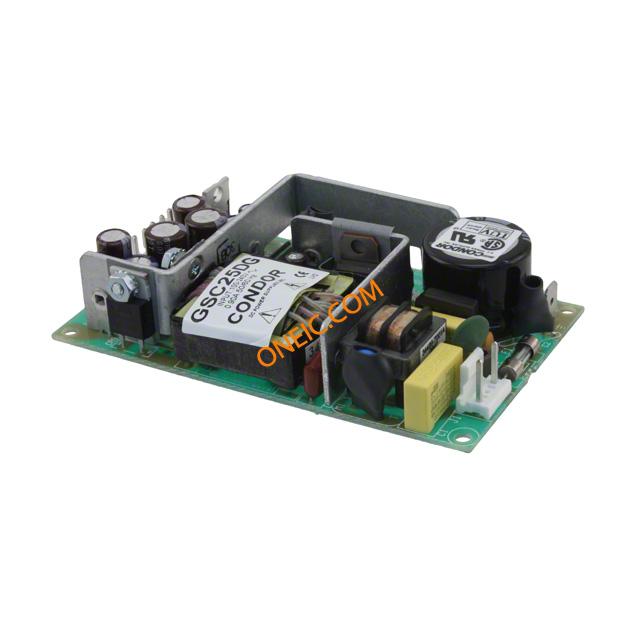

GSC25DG
| Manufacturer | |
| Description | AC/DC Power Supply Triple-OUT 5.1V/24V/-12V 2.5A/1A/0.2A 25W 9-Pin PS TRIPLE OUT 25W +5.1,24,-12V PowerSupply;AC-DC;5.1V@2.5A,24V@1A,-12V@0.2A;90-264VIn;OpenFrame;GSC25 |
| Category |
Business
| Other Names | 271-2364 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | CE, CSA, EN, TUV, UL |
Electrical
| Output | 5.1VDC@2.5A,24VDC@1A,-12VDC@0.2A | Frequency | 47 to 63 Hz |
| Operation | Switching | Efficiency | 70(Min) % |
| Power - Max | 25 W | Power (Watts) | 25W |
| Power - Output | 25W | Voltage Rating | 90 to 264 V |
| Load Regulation | 1%, 4% | Current - Output | 2.5|1|0.2 A |
| Number of Outputs | 3 | Power Supply Type | Switching (Open Frame) |
| Power (Watts) - Max | 25W | Current Rating (Max) | 0.6 A |
| Voltage - Input (Min) | 5.1V, -12V, 24V | ||
Mechanical
| Mounting Type | Chassis Mount | Mounting Style | Panel |
| Primary Material | AC-DC | Size / Dimension | 4.25" L x 2.50" W x 0.86" H (108.0mm x 63.5mm x 21.8mm) |
Product Info
| Type | Switching | Features | OvervoltageProtectionStandard |
| Applications | Commercial | Manufacturer | GSC25Series |
| Configuration | OpenFrame | ||
Environmental
| Operating Temperature | 0 to 50 °C | ||
Documents & Media
