GSC25B
| Manufacturer | |
| Description | AC/DC Power Supply Triple-OUT 5.1V/15V/-15V 2.5A/1.5A/0.2A 25W 8-Pin POWER SUPPLY SWITCHER 20W TRIPLE |
| Category |
Business
| Lead Time | 112 Days | Subcategory | AC to DC Power Supply |
| Standard Package | 20 | ||
Compliance
| RoHS | Vendor undefined / Vendor undefined | EU RoHS | Not Compliant |
| Approval Agency | CE, CSA, EN, TUV, UL | ||
Electrical
| Frequency | 47 to 63 | Efficiency | 70% |
| Power - Max | 25 | Power (Watts) | 25W |
| Voltage Rating | 5.1|15|-15 | Load Regulation | 1%, 4% |
| Current - Output | -15 VDC @ 200mA | Number of Outputs | 3 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 20W |
| Voltage - Input (Min) | 5.1V, ±15V | ||
Mechanical
| Mounting Type | Chassis Mount | Size / Dimension | 4.25" L x 2.50" W x 0.86" H (108.0mm x 63.5mm x 21.8mm) |
| Number of Positions | 8 | ||
Product Info
| Type | Switching | Style | Open Frame |
| Applications | Commercial | For Use With/Related Products | GSC25BG |
Environmental
| Operating Temperature | 0°C ~ 50°C | ||
Documents & Media
Similar Parts
08-30466-0025
sl power electronics
COVER FOR GSC25 POWER SUPPLY
640250-3
te connectivity / amp
Conn Housing RCP 3 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3 POS W/RAMP SL-156 3w housing without polarising tabs Connector; Receptacle; 3; Crimp; Locking Ramp; 180 deg; Nylon; SL-156 Housings Headers & Wire Housings 3P HOUSING W/LCK RMP SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;3;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Plug; wire-board; female; PIN:3; w/o terminals; 3.96mm; for cable Socket housing, straight 3P, 640250-3, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 3 路 直 母 压接连接器外壳 03P SL156 HSG W/LCK RAMP NATL
640250-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS W/RAMP SL-156 6w housing without polarising tabs Headers & Wire Housings 6P HSG W/LCK RMP SL156 Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;6;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 6P, 640250-6, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 压接连接器外壳 06P SL156 HSG W/LCK RAMP NATL

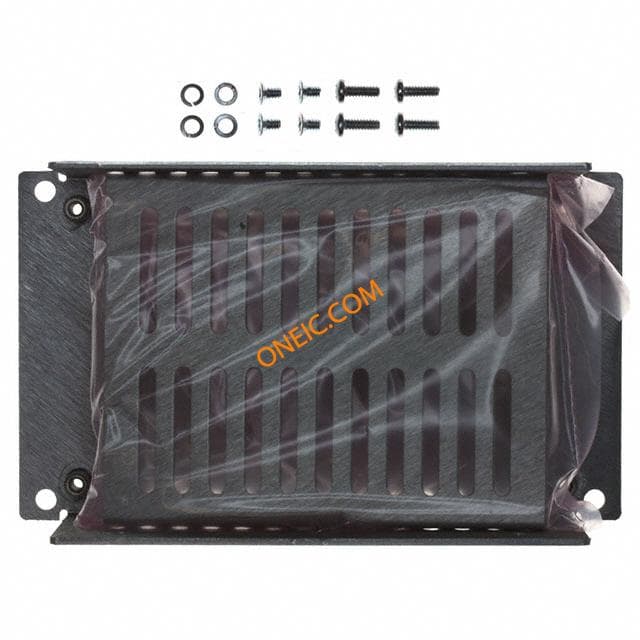

08-30466-0025G
