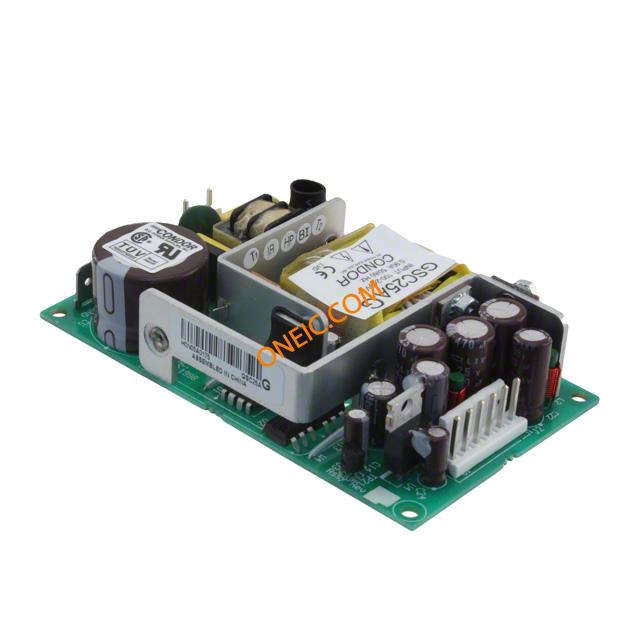

GSC25AG
| Manufacturer | |
| Description | AC/DC Power Supply Triple-OUT 5.1V/12V/-12V 2.5A/1.5A/0.2A 25W 8-Pin PS TRIPLE OUT 25W +5.1,12,-12V PowerSupply;AC-DC;5.1V@2.5A,12V@1.5A,-12V@0.2A;90-264VIn;OpenFrame;GSC25 SL POWER CONDOR 嵌入式开关模式电源 SMPS , 开放式封装 |
| Category |
Business
| Other Names | 271-2363 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Approval Agency | CE, CSA, EN, TUV, UL |
Electrical
| Output | 5.1VDC@2.5A,12VDC@1.5A,-12VDC@0.2A | Frequency | 47 to 63 Hz |
| Operation | Switching | Efficiency | 70(Min) % |
| Power - Max | 25 W | Output Power | 25 W |
| Power (Watts) | 25W | Power - Output | 25W |
| Voltage Rating | 90 to 264 V | Load Regulation | 1%, 4% |
| Current - Output | 2.5|1.5|0.2 A | Number of Outputs | 3 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 25W |
| Current Rating (Max) | 0.6 A | Voltage - Input (Min) | 5.1V, ±12V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Depth | 63.5 mm | Height | 21.84 mm |
| Mounting Type | Chassis Mount | Mounting Style | Screw |
| Length - Overall | 107.95 mm | Primary Material | AC-DC |
| Size / Dimension | 4.25" L x 2.50" W x 0.86" H (108.0mm x 63.5mm x 21.8mm) | Number of Positions | 8 |
Product Info
| Type | Switching | Style | Open Frame |
| DELETED | Compliant | Features | OvervoltageProtectionStandard |
| Applications | Commercial | Manufacturer | GSC25Series |
| Configuration | OpenFrame | ||
Environmental
| Operating Temperature | 0 to 50 °C | Operating Temperature - Junction | 50C |
