点击放大查看

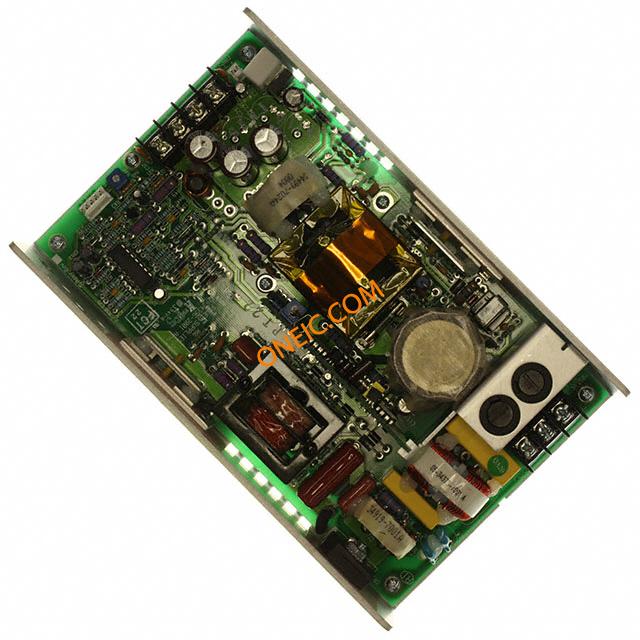

GPFM250-24
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 7.5A 250W PWR SPLY MEDICAL PFC 250W 24V PowerSupply,SingleOutput;250W;1;24V;10.5A;85to264VAC;3.7A; |
| Category |
Business
| Other Names | 271-2149 | Standard Package | 1 |
Compliance
| RoHS | Vendor undefined / Vendor undefined | EU RoHS | Not Compliant |
| Standards | CEMarked,ULListed,IECandCSACertified | Approval Agency | CE, IEC, UL |
Electrical
| Output | 0.5%rms,1%pk-pk,20MHzBandwidth, | Frequency | 47 to 63 |
| Operation | Switching | Efficiency | 80% |
| Power - Max | 250W | Power (Watts) | 250W |
| Power - Output | 250W | Voltage Rating | 24 |
| Line Regulation | 2% | Load Regulation | 2% |
| Current - Output | 24 VDC @ 7.5A | Current - Leakage | 70μA |
| Number of Outputs | 1 | Power Supply Type | Switching (Open Frame) |
| Overload Protection | Builtinonallmodels. | Power (Watts) - Max | 250W |
| Current - Input Bias | 3.7A | Voltage - Input (Min) | 24V |
Mechanical
| Width | 127 | Mounting Type | Screw |
| Mounting Style | Panel | Length - Overall | 203.2 |
| Primary Material | AC-DC | Size / Dimension | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) |
| Shell Size - Insert | 46.05 | ||
Product Info
| Type | Switching | Style | Medical U Frame |
| Features | RemoteSense | Applications | Medical |
| Manufacturer | GPFM250Series | Configuration | OpenFrame |
Environmental
| Run Time (Hours) | 25msminimumfromlossofacinputatfullload,nominalline(115Vac). | Operating Temperature | 0°C ~ 50°C |
