GLC50BG
| Manufacturer | |
| Description | AC/DC Power Supply Triple-OUT 5.05V/15V/-15V 4A/2.5A/0.2A 50W 9-Pin POWER SUPPLY SWITCHER 50W TRIPLE POWERSUPPLY,SWITCHING;50W;90TO264VAC;4A;37A;CEMARKED;5.1V;15V SL POWER CONDOR 嵌入式开关模式电源 SMPS , 开放式封装 |
| Category |
Business
| Lead Time | 112 Days | Subcategory | AC to DC Power Supply |
| Standard Package | Bulk | ||
Compliance
| RoHS | Vendor undefined / Vendor undefined | Rad Hardened | No |
| Approval Agency | CE, CSA, EN, IEC, UL | ||
Electrical
| Output | 5.05VDC@4A,15VDC@2.5A,-15VDC@0.2A | Frequency | 47 to 63 Hz |
| Operation | Switching | Efficiency | 85 % |
| Power - Max | 50 W | Output Power | 50 W |
| Power (Watts) | 50W | Power - Output | 50W |
| Voltage Rating | 90 to 264 V | Line Regulation | 2%; 10%, -5%; 3% |
| Load Regulation | 2%; 10%, -5%; 3% | Current - Output | 4|2.5|0.2 A |
| Number of Outputs | 3 | Power Supply Type | Switching (Open Frame) |
| Power (Watts) - Max | 50W | Current Rating (Max) | 1.5 A |
| Voltage - Input (Min) | 5.1V, ±15V | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Depth | 63.5 mm | Height | 31.75 mm |
| Mounting Type | Chassis Mount | Mounting Style | Screw |
| Length - Overall | 107.95 mm | Primary Material | AC-DC |
| Size / Dimension | 4.25" L x 2.50" W x 1.25" H (180.0mm x 63.5mm x 31.8mm) | Number of Positions | 9 |
Product Info
| Type | Switching | Features | 2-YearsWarranty,Compact |
| Applications | Commercial | Manufacturer | GLC50Series |
| Configuration | OpenFrame | For Use With/Related Products | GLC50B |
Environmental
| Operating Temperature | 0 to 50 °C | Operating Temperature - Junction | 50C |
Documents & Media
Similar Parts
08-30466-0050
sl power electronics
COVER FOR GLC50 POWER SUPPLY
640250-3
te connectivity / amp
Conn Housing RCP 3 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3 POS W/RAMP SL-156 3w housing without polarising tabs Connector; Receptacle; 3; Crimp; Locking Ramp; 180 deg; Nylon; SL-156 Housings Headers & Wire Housings 3P HOUSING W/LCK RMP SL156 Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 3 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;3;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Plug; wire-board; female; PIN:3; w/o terminals; 3.96mm; for cable Socket housing, straight 3P, 640250-3, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 3 路 直 母 压接连接器外壳 03P SL156 HSG W/LCK RAMP NATL
640250-6
te connectivity / amp
Conn Housing RCP 6 POS 3.96mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS W/RAMP SL-156 6w housing without polarising tabs Headers & Wire Housings 6P HSG W/LCK RMP SL156 Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;6;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 6P, 640250-6, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 6 路 直 母 压接连接器外壳 06P SL156 HSG W/LCK RAMP NATL

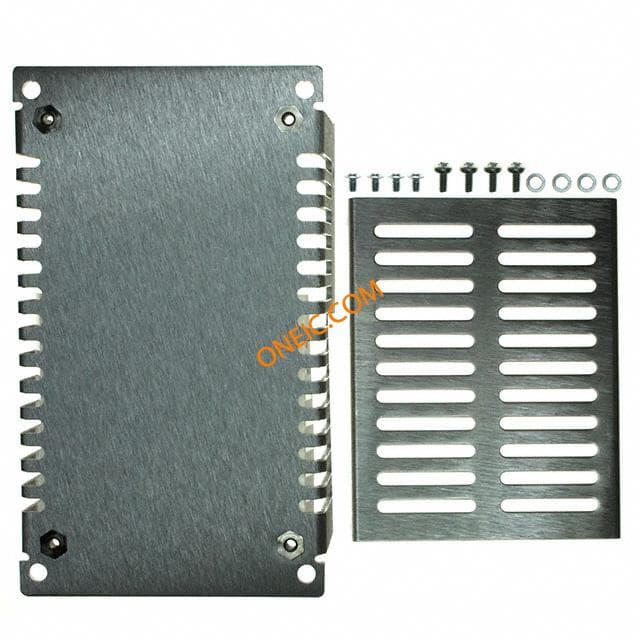

08-30466-0050G
