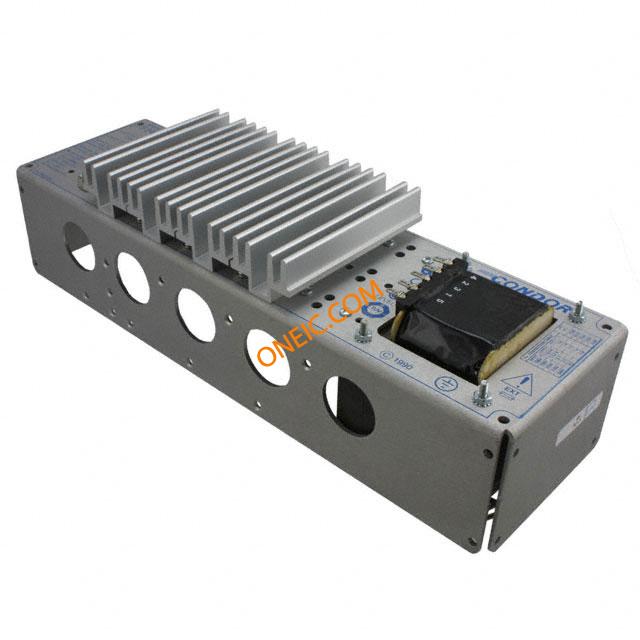

F24-12-A+G
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 24V 12A Case F AC/DC CONVERTER 24V 288W PowerSupply;AC-DC;24V@12A;100-240VIn;OpenFrame;PanelMount;Linear;FSeries |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 112 Days | Other Names | 271-2270 |
| Subcategory | AC to DC Power Supply | Standard Package | Bulk |
| Standard Package Name | Case F | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CE, CSA, TUV, UL | ||
Electrical
| Output | 24VDC@12A | Frequency | 47 to 63 Hz |
| Operation | Linear | Efficiency | 60 % |
| Power (Watts) | 288W | Power - Output | 288W |
| Voltage Rating | 100|120|240|215 V | Line Regulation | 0.05% |
| Load Regulation | 0.05% | Current - Output | 12 A |
| Number of Outputs | 1 | Power Supply Type | Linear, Regulated (Open Frame) |
| Power (Watts) - Max | 288W | Voltage - Input (Min) | 24V |
Mechanical
| Width | 123.95 | Mounting Type | Screw |
| Mounting Style | Panel | Length - Overall | 425.45 |
| Package Quantity | Case F | Primary Material | AC-DC |
| Size / Dimension | 16.75" L x 4.88" W x 3.50" H (425.5mm x 124.0mm x 88.9mm) | Shell Size - Insert | 88.9 |
Product Info
| Type | Regulated Linear | Style | Open Frame |
| Features | Adjustable Output, Remote Sense, Universal Input | Applications | Commercial |
| Manufacturer | FSeries | Configuration | OpenFrame |
| For Use With/Related Products | F24-12-A+ | ||
Environmental
| Operating Temperature | 0 to 50 °C | ||
