SMV1236-011LF
| Manufacturer | |
| Description | Diode VAR Cap Single 15V 15.5pF 2-Pin SOD-323 T/R DIODE VARACTOR 15V 20MA SOD-323 Varactor Diodes Ls=1.5nH SOD-323 Single RF TUNING VARACTOR DIODE SOD 323 N-TYPE SINGLE LEAD FREE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | General Purpose Diodes | Other Names | 863-1134-1 |
| Standard Package | 3,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85411000 |
| Rad Hardened | No | ||
Electrical
| Q @ Freq | 700(Typ) | Frequency | 3 |
| Capacitance | 17.02 pF | Capacitance Ratio | 3.5 |
| Resistance @ If, F | :0.5ohm | Capacitance - Input | 15.5 pF |
| Capacitance @ Vr, F | 5.3pF @ 6V, 50MHz | Diode Configuration | :SOD-323 |
| Tuning Voltage (VDC) | 1/6 V | Available Frequency Range | UHF |
| Voltage Regulation - Load | 15 V | Capacitance Ratio Condition | C1/C6 |
| Voltage - Peak Reverse (Max) | 15V | Current - DC Forward (If) (Max) | :20mA |
| Voltage - DC Reverse (Vr) (Max) | :15V | Voltage - Reverse Standoff (Typ) | 15 V |
| Current - LED Trigger (Ift) (Max) | :20mA | Voltage - Gate Trigger (Vgt) (Max) | 15 V |
| Current - Continuous Drain (Id) @ 25degC | 20 mA | ||
Mechanical
| Weight | 0.000054 | Packaging | Tape & Reel (TR) |
| Termination | :SMD | Mounting Type | Surface Mount |

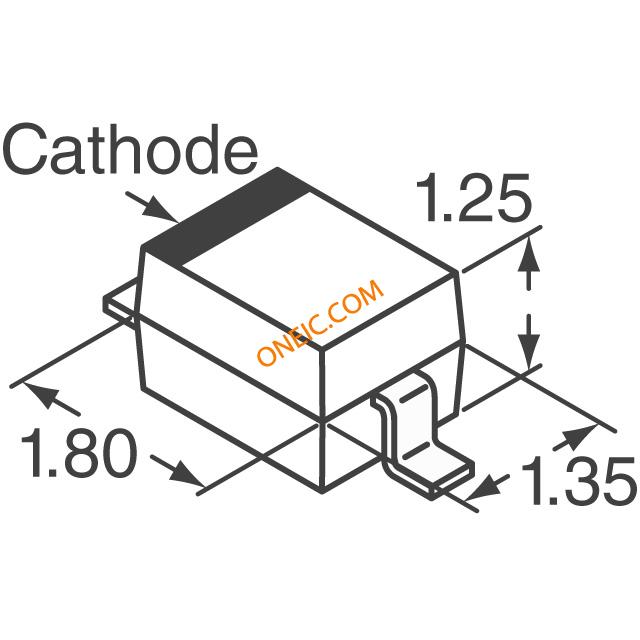

| Number of Pins | :2 | Package / Case | 2SOD-323 |
| Package Cooled | SOD-323 | Material Finish | :MSL 1 - Unlimited |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Supplier Device Package | SOD-323 | ||
Product Info
| Type | Tuner|VCO | Diode Type | Single |
| Configuration | Single | Other Specifications | 15.5@1V pF |
Environmental
| Operating Temperature | - 55 C | Operating Temperature - Junction | 125C |
