SMP1302-085LF
| Manufacturer | |
| Description | Diode PIN Attenuator/Switch 200V 3-Pin QFN EP DIODE RF PIN 200V 1.5A 3QFN PIN Diodes .3pF -40C +150C |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1146-1 | Standard Package | 3,000 |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Power - Rated | 3 W | Frequency Range | SHF |
| Voltage - Supply | 0.8 V | Resistance @ If, F | 1.5 Ohm @ 100mA, 100MHz |
| Capacitance - Input | 0.35 pF | Capacitance @ Vr, F | 0.35@30V pF |
| LED Forward Current | 200 mA | LED Forward Voltage | 0.8 V |
| Resistance - Series | 1.5 Ohms | Current Rating (Max) | 1.5A |
| Power - Average Forward | 2.8 W | Power Dissipation (Max) | 2800 mW |
| Available Frequency Range | SHF | Voltage Regulation - Load | 200 V |
| Resistance - Channel (Ohms) | 3 Ohms | DC Resistance (DCR) - Series | 1.5@100mA ohm |
| Voltage - Peak Reverse (Max) | 200V | Resistance - Initial (Ri) (Min) | 3@10mA ohm |
| Current - Peak Pulse (10/1000us) | 200 mA | Voltage - Forward (Vf) (Max) @ If | 0.8(Typ)@10mA V |
| Voltage - Gate Trigger (Vgt) (Max) | 200 V | ||
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |

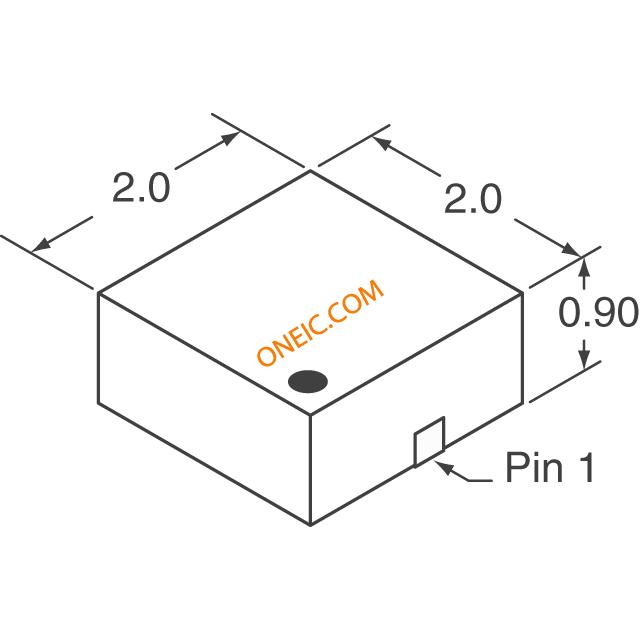

| Package / Case | 3QFN EP | Package Cooled | QFN EP |
| Number of Positions | 3 | Supplier Device Package | 3-QFN (2x2) |
Product Info
| Type | Attenuator|Switch | DELETED | Compliant |
| Diode Type | PIN - Single | Manufacturer | Skyworks Solutions, Inc. |
| Configuration | Single Dual Anode | ||
Environmental
| Rated Life | 0.7 us | Operating Temperature | Automotive |
| Operating Temperature - Junction | 150C | ||
