SKY65116-21
| Manufacturer | |
| Description | RF Amp Chip Single Power Amp 500MHz 4V 12-Pin IC AMP LINEAR 390-500MHZ 12-MCM RF Amplifier 390-500MHz Gain 35dB 3.6Volt -40C+85C |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1072-1 | Standard Package | 2,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Gain | 35dB | P1dB | 32.5dBm (1.778W) |
| Noise | 6@500MHz dB | Frequency | 390MHz ~ 500MHz |
| Output Fan | 43 dBm | Noise Figure | 6@500MHz dB |
| Power - Rated | 3.7 W | Power - Output | 32.5@500MHz dBm |
| Power Gain Typ | 35 dB | Test Frequency | 390 MHz to 500 MHz |
| Frequency Range | 200 to 600 MHz | Current - Output | 1.3A |
| Current - Supply | 1300 mA | Voltage - Supply | 3.6 V |
| Number of Channels | 1 | Voltage - Supply (Min) | 3.2 V |
| Power Dissipation (Max) | 3700 mW | Power (Typ) @ Conditions | 35@500MHz dB |
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 12-LQFN Exposed Pad |

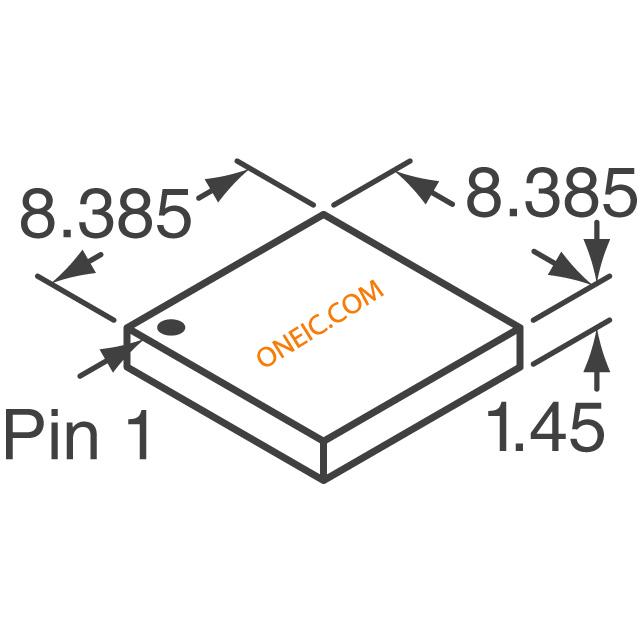

| Number of Positions | 12 | Supplier Device Package | 12-MCM (8.4x8.4) |
Product Info
| Type | Power Amplifier | RF Type | GSM, NMT, TETRA, UHF, WLL |
| Manufacturer | Power Amplifier | Other Specifications | 6(Typ)@500MHz dB |
Environmental
| Operating Temperature | + 85 C | ||
