SKY65111-348LF
| Manufacturer | |
| Description | RF Amp Chip Single Power Amp 1.1GHz 5V 16-Pin MLF IC AMP INGAP 600-110MHZ 12-QFN RF Amplifier 600-1100MHz 2W InGaP HBT 3 Stage IC, AMP, RF, 2W, 600-1100MHZ POWER AMPLIFIER |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1071-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423300 | Rad Hardened | No |
Electrical
| Gain | 40dB | P1dB | 29.5dBm (891.3mW) |
| VSWR | :8 | Frequency | 600MHz ~ 1.1GHz |
| Power - Output | 29.5 dBm | Power Gain Typ | 40 dB |
| Test Frequency | 902MHz ~ 928MHz | Frequency - Max | :1.1GHz |
| Frequency - Min | :800MHz | Frequency Range | 600 to 1000 MHz |
| Current - Output | 250mA | Current - Supply | 700@3.5V mA |
| Voltage - Supply | 3.5 V | Number of Channels | 1 |
| Voltage - Supply (Min) | 2.5 V | Power (Typ) @ Conditions | 40 dB |
Mechanical
| Weight | 0.000168 | Packaging | Tape & Reel (TR) |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :12 |
| Package / Case | 16MLF | Package Cooled | MLF |
| Material Finish | :- | Number of Positions | 16 |

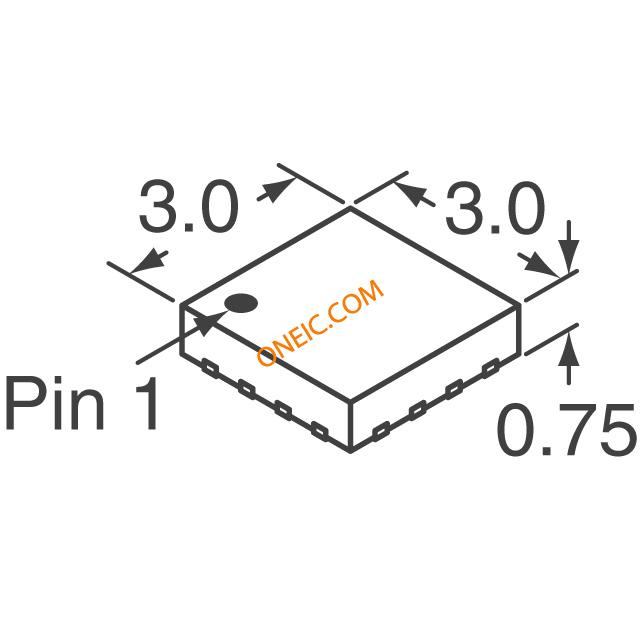

| Supplier Device Package | 12-QFN (3x3) | ||
Product Info
| Type | Power Amplifier | RF Type | ISM |
| Manufacturer | Power Amplifier | Other Specifications | 15(Typ) dB |
Environmental
| Operating Temperature | + 85 C | ||
