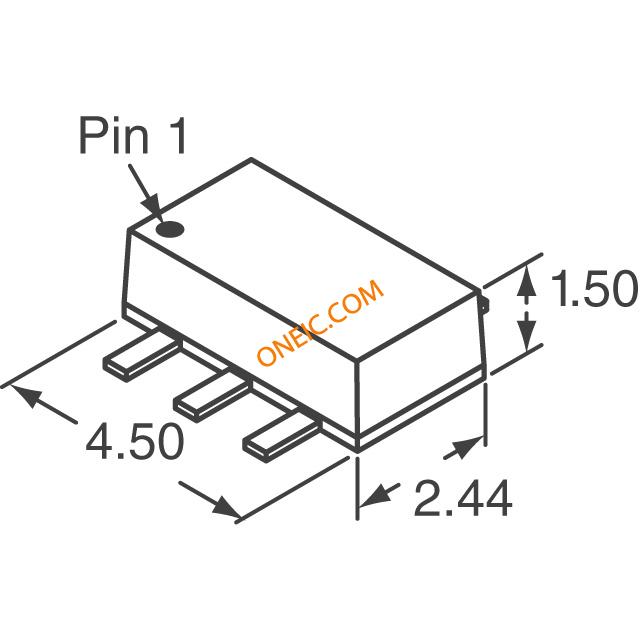

点击放大查看
SKY65009-70LF
| Manufacturer | |
| Description | RF Amp Chip Single Power Amp 2.5GHz 5.5V 4-Pin(3+Tab) SOT-89 IC AMP DVR 250-2500MHZ SOT89-3 RF Amplifier 250-2700MHz NF 6.5dB PAE 40% |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1060-1 | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Gain | 22dB | P1dB | 25dBm (316.2mW) |
| Frequency | 250MHz ~ 2.5GHz | Power (dBm) | 25dBm (316.2mW) |
| Noise Figure | 4.1@2450MHz dB | Power - Rated | 1.1 W |
| Power - Output | 25.5@2450MHz dBm | Test Frequency | 450MHz |
| Frequency Group | GSM, ISM, PCS, WCDMA | Frequency Range | 2000 to 3000 MHz |
| Current - Output | 100mA | Voltage - Supply | 5 V |
| Number of Channels | 1 | Current Rating (Max) | 100mA |
| Voltage - Supply (Min) | 5.5 V | Power Dissipation (Max) | 1100 mW |
| Power (Typ) @ Conditions | 10.3@2450MHz dB | ||
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Package / Case | 4SOT-89 | Package Cooled | SOT-89 |
| Number of Positions | 3 +Tab | Supplier Device Package | SOT-89-3 |
Product Info
| Type | Power Amplifier | RF Type | GSM, ISM, PCS, WCDMA |
| Manufacturer | Power Amplifier | Other Specifications | 15@2450MHz dB |
