SKY13286-359LF
| Manufacturer | |
| Description | RF Switch SPDT 100MHz to 6GHz 40dB 16-Pin QFN IC SWITCH SPDT 100M-6GHZ 16-QFN RF Switch ICs .1-6.0GHz SPDT IL 1.8dB Max SWITCH, RF, SPDT, 0.1-6GHZ HI ISOLATE GaAs High Isolation SPDT Non-Reflective Switch 100 MHz-6 GHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1049-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85411000 | Rad Hardened | No |
Electrical
| IIP3 | 46dBm (typ) | P1dB | 30dBm (typ) IP1dB |
| Circuit | SPDT | Frequency | 6000 MHz |
| Impedance | 50 Ohm | Isolation | 42dB @ 6GHz (typ) |
| Insertion Loss | 1.5 dB | Frequency - Max | 6000 MHz |
| Frequency - Min | :100MHz | Frequency Range | :100MHz to 6GHz |
| Voltage - Supply | 2.7 to 5.5 V | Voltage - Isolation | 40 dB |
| Voltage - Off State | 42 dB | Frequency - Output 2 | 100MHz |
| Insertion Loss (Max) | 1.8 dB | Switch Function/Rating | Single SPDT |
| Frequency Bands (Low / High) | 100 to 6000 MHz | Switch Time (Ton, Toff) (Max) | 50 ns |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Weight | 0.000206 | Packaging | Tape & Reel (TR) |
| Termination | :SMD | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16QFN |
| Package Cooled | QFN | Material Finish | :- |

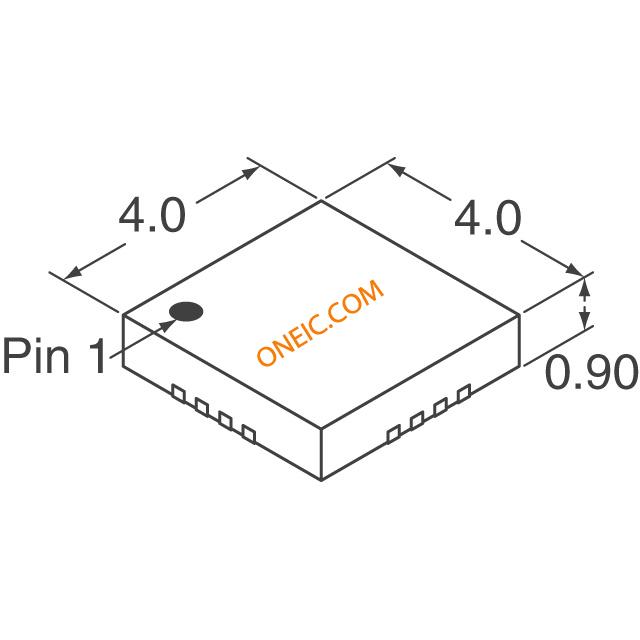

| Number of Positions | 16 | Supplier Device Package | 16-QFN (4x4) |
Product Info
| RF Type | GSM, ISM, PCS, WCDMA | Features | Single Line Control |
| Topology | Absorptive | Technology | GaAs pHEMT |
| Switch Type | SPDT | Number of Switches | 3 |
Environmental
| Operating Temperature | -40°C ~ 95°C | ||
