AS225-313LF
| Manufacturer | |
| Description | Phemt Gaas Ic 1 W High Linearity 0.1-6 Ghz Spdt Switch 6-Pin QFN IC SW SPDT 0.1-6GHZ GAAS 6-QFN RF Switch ICs .1-6GHz IL .6dB Iso 21dB @5.5GHz 0.1-6 GHz SPDT 1W MLP6LD 3X2EP LEAD FREE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1012-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| IIP3 | 55dBm (typ) | P1dB | 34dBm (typ) P1dB |
| Circuit | SPDT | Frequency | 100 MHz to 6 GHz |
| Impedance | 50 Ohm | Isolation | 21dB @ 5.85GHz (typ) |
| Insertion Loss | 0.6 dB | Frequency - Max | 6GHz |
| Voltage - Supply | 3V, 5V | Voltage - Off State | 20 dB |
| Frequency - Output 2 | 100MHz | Insertion Loss (Max) | 0.6dB @ 5.85GHz |
| Switch Function/Rating | SPDT | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Style | SMD/SMT |
| Package / Case | 6QFN | Package Cooled | QFN |

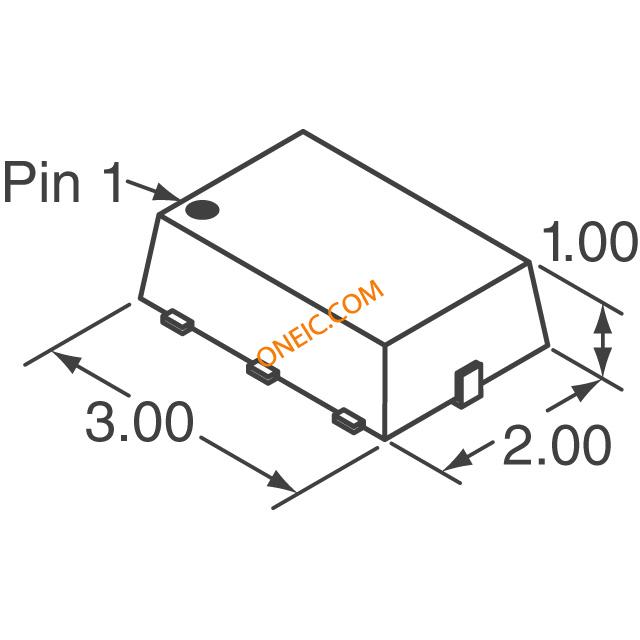

| Number of Positions | 6 | Supplier Device Package | 6-QFN (2x3) |
Product Info
| RF Type | 802.11a/b/g/Wi-Fi, WLAN | Manufacturer | Skyworks Solutions, Inc. |
| Number of Switches | Single | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
