AS204-80LF
| Manufacturer | |
| Description | RF Switch SP4T 0.3MHz to 3.5GHz 22dB 16-Pin SSOP IC SW SP4T 300K-3.5GHZ 16-SSOP RF Switch ICs .3-3500MHZ IL .5dB Iso 45dB @ .9GHz SP4T SWITCH - PB FREE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1008-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| IIP3 | 29dBm (typ) | P1dB | 26dBm (typ) IP1dB |
| Circuit | SP4T | Frequency | 3500 MHz |
| Impedance | 50 Ohm | Isolation | 25dB @ 3.5GHz (typ) |
| Insertion Loss | 0.9 dB | Frequency - Max | 3500 MHz |
| Voltage - Supply | 2.4 to 5 V | Voltage - Isolation | 22 dB |
| Voltage - Off State | 25 dB | Frequency - Output 2 | 300kHz |
| Insertion Loss (Max) | 1.2 dB | Switch Function/Rating | Single SP4T |
| Frequency Bands (Low / High) | 0.3 to 3500 MHz | Switch Time (Ton, Toff) (Max) | 125 ns |
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Style | SMD/SMT |

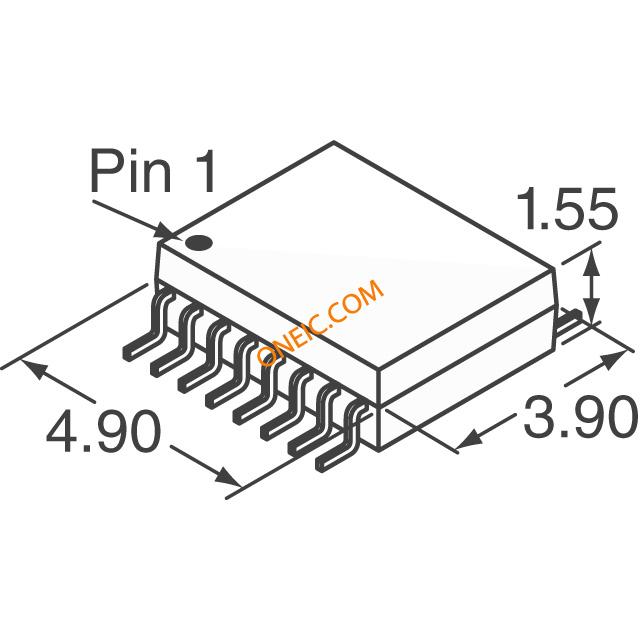

| Package / Case | 16SSOP | Package Cooled | SSOP |
| Number of Positions | 16 | Supplier Device Package | 16-SSOP |
Product Info
| RF Type | Cellular | Topology | Absorptive |
| Switch Type | SP4T | Number of Switches | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
