AS186-302LF
| Manufacturer | |
| Description | RF Switch SPDT 900MHz to 4GHz 35dB 8-Pin MSOP EP IC SW SPDT LF-4GHZ GAAS 8-MSOP RF Switch ICs DC-6GHz IL 1dB typ Iso 55dB IC, SWITCH, RF, SPDT, LF-4.0GHZ GaAs IC High Isolation Positive Control SPDT Non-Reflective Switch DC–4.0 GHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1005-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| IIP3 | 46dBm (typ) | P1dB | 30dBm (typ) IP1dB |
| VSWR | :1.35 | Circuit | SPDT |
| Frequency | 4000 MHz | Impedance | 50 Ohm |
| Isolation | 40dB @ 4GHz (typ) | Insertion Loss | 1 dB |
| Frequency - Max | 4000 MHz | Frequency - Min | :500MHz |
| Frequency Range | :6GHz | Voltage - Supply | 3 to 5 V |
| Voltage - Isolation | 35 dB | Voltage - Off State | 40 dB |
| Frequency - Output 2 | LF | Insertion Loss (Max) | 1.25 dB |
| Switch Function/Rating | Single SPDT | Frequency Bands (Low / High) | 900 to 4000 MHz |
| Switch Time (Ton, Toff) (Max) | 50 ns | ||
Mechanical
| Weight | 0.000194 | Packaging | Tape & Reel (TR) |
| Termination | :SMD | Mounting Style | SMD/SMT |

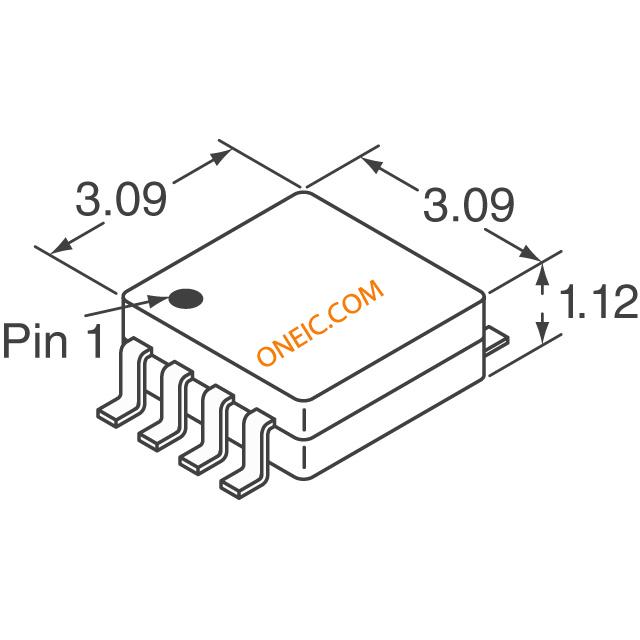

| Number of Pins | :8 | Package / Case | 8MSOP EP |
| Package Cooled | MSOP EP | Material Finish | :- |
| Number of Positions | 8 | Supplier Device Package | 8-MSOP |
Product Info
| RF Type | GSM, ISM, PCS, WCDMA | Topology | Absorptive |
| Switch Type | SPDT | Number of Switches | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
