AS179-92LF
| Manufacturer | |
| Description | RF Switch SPDT 0.3MHz to 3GHz 20dB 6-Pin SC-88 T/R IC SW SPDT DC-3GHZ GAAS SC-88 IC, SWITCH, RF, SPDT, 0.02-3.0GHZ PHEMT GaAs IC SPDT Switch 0.02–3 GHz RF Switch ICs 802.11b/g IL .3dB IP3=+43dBm typ. |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1003-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| IIP3 | 50dBm (typ) | P1dB | 34dBm (typ) IP1dB |
| VSWR | :1.3 | Circuit | SPDT |
| Frequency | 3000 MHz | Impedance | 50 Ohm |
| Isolation | 23dB @ 3GHz (typ) | Insertion Loss | 0.6 dB |
| Frequency - Max | 3000 MHz | Frequency - Min | :20MHz |
| Frequency Range | :20MHz to 3GHz | Voltage - Supply | 2 to 5 V |
| Voltage - Isolation | 20 dB | Frequency - Output 2 | 20MHz |
| Insertion Loss (Max) | 0.6 dB | Switch Function/Rating | Single SPDT |
| Frequency Bands (Low / High) | 0.3 to 3000 MHz | ||
Mechanical
| Weight | 0.000053 | Packaging | Tape & Reel (TR) |
| Termination | :SMD | Number of Pins | :6 |

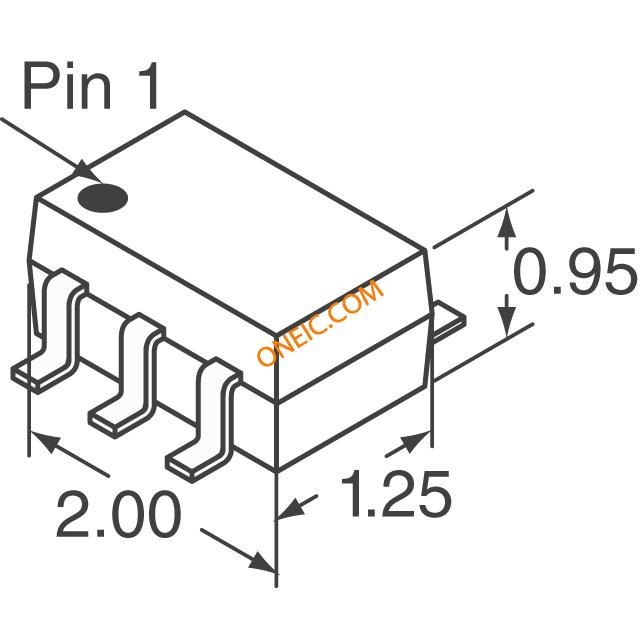

| Package / Case | 6SC-88 | Package Cooled | SC-88 |
| Material Finish | :- | Number of Positions | 6 |
| Supplier Device Package | SC-70-6 | ||
Product Info
| RF Type | 802.11b, g, Bluetooth, WLAN | Topology | Reflective |
| Technology | GaAs pHEMT | Switch Type | SPDT |
| Number of Switches | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
