SKY65135-21
| Manufacturer | |
| Description | IC AMP WLAN 2.4-2.5GHZ 20-MCM RF Amplifier 2.4GHz GaAs HBT Sml Sig Gain 33.5dB RF Amp Chip Single Power Amp 2.5GHz 3.6V/5.5V 20-Pin MCM EP |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1073-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Gain | 33.5dB | P1dB | 33.5dBm (2.238W) |
| Frequency | 2.4GHz ~ 2.5GHz | Noise Figure | 5dB |
| Power - Rated | 4 W | Power Gain Typ | 33.5 dB |
| Test Frequency | 2.4GHz | Current - Output | 1.15A |
| Voltage - Supply | 4.5 V ~ 5.5 V | Number of Channels | 1 |
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 20-LQFN Exposed Pad |
| Package Cooled | MCM EP | Number of Positions | 20 |

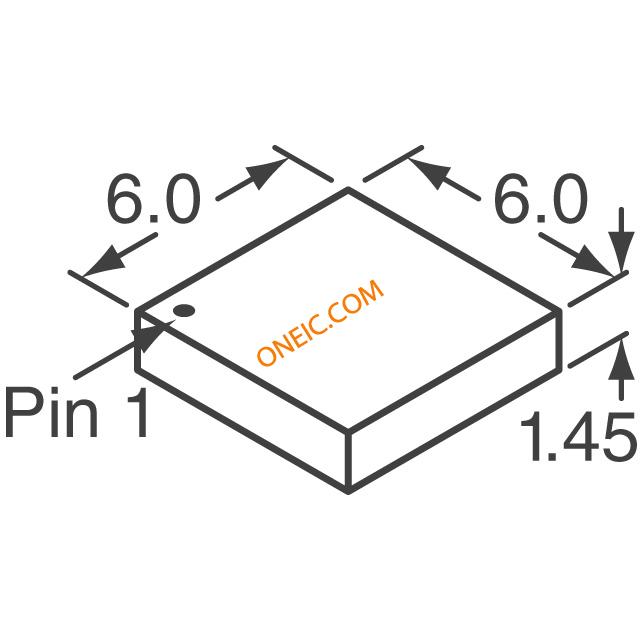

| Supplier Device Package | 20-MCM (6x6) | ||
Product Info
| Type | WLAN Linear Power Amplifier | RF Type | WLAN |
| Manufacturer | Power Amplifier | ||
Environmental
| Operating Temperature | + 85 C | ||
