SKY65050-372LF
| Manufacturer | |
| Description | IC PHEMT 2.4GHZ 70MA LN SC70-4 RF Amplifier .45-6.0GHz NF .45dB Gain 15.5dB @ 2.4GHz 200UM PHEMT DISCRETE IN 4L RF JFET Transistors .45-6.0GHz NF .45dB Gain 15.5dB @ 2.4GHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1067-2 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Gain | 15.5dB | P1dB | 10.5 dBm |
| Frequency | 2.4GHz | Output Fan | 23.5 dBm |
| Noise Figure | 0.4dB | Power - Output | 10.5dBm |
| Power Gain Typ | 15.5 dB | Test Frequency | 2.4 GHz |
| Voltage - Test | 3V | Voltage Rating | 6V |
| Transistor Type | pHEMT FET | Current - Output | 20mA |
| Voltage - Supply | 3 V | Current Rating (Max) | 55mA |
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Style | SMD/SMT |

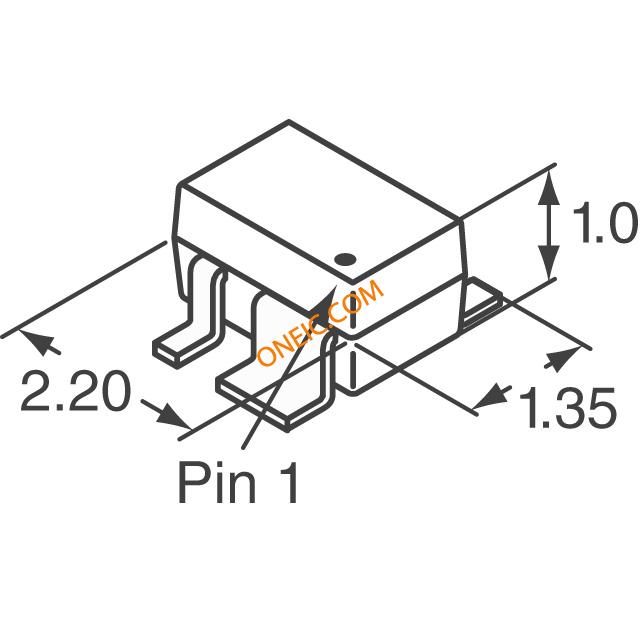

| Package / Case | SC-82A, SOT-343 | Supplier Device Package | SC-70-4 |
Product Info
| Type | Low Noise Transistor | Technology | GaAs |
| Manufacturer | Skyworks Solutions, Inc. | ||
Environmental
| Operating Temperature | + 85 C | ||
