SKY65013-92LF
| Manufacturer | |
| Description | IC AMP INGAP LF-12GHZ SC-88 RF Amp Chip Single Cascadable Amp 12GHz 3.7V 6-Pin SC-88 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 863-1061-1 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Gain | 12.5dB | P1dB | 12.5dBm (17.8mW) |
| Frequency | 0Hz ~ 12GHz | Noise Figure | 5.8dB |
| Power - Rated | 0.35 W | Test Frequency | 2GHz |
| Current - Output | 70mA | Voltage - Supply | 5V |
| Number of Channels | 1 | Voltage - Supply (Min) | 3.3 V |
Mechanical
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |

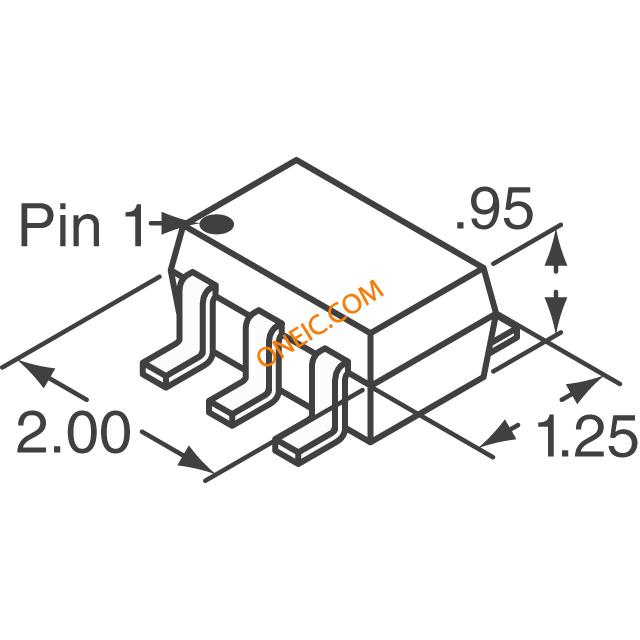

| Package / Case | 6-TSSOP, SC-88, SOT-363 | Package Cooled | SC-88 |
| Number of Positions | 6 | Supplier Device Package | SC-88 |
Product Info
| RF Type | DBS, HLAN, WLAN | Manufacturer | Cascadable Amplifier |
Environmental
| Operating Temperature | -40C to 85C | ||
