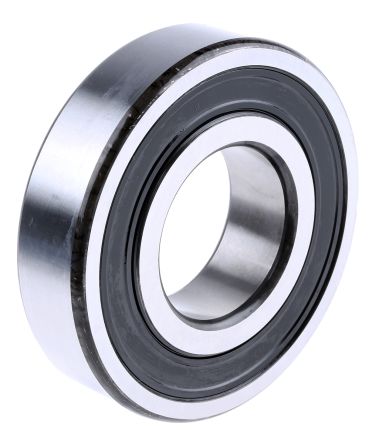

6309-2RS1
| Manufacturer | |
| Description | SKF Deep Groove Ball Bearing 6309-2RS1 6309-2RS1SEALEDB.B SKF(SKF) 连轴器 Grooved ball bearing 100 mm, 6309-2RS1, SKF SKF 深槽 滚珠轴承 , 31.5kN 静态负荷, 45mm 内径, 100mm 外径 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Speed | 4500rpm | Speed - Write | 9500 |
| Frequency - Max | 4500rpm | Load - Max Switching | 31.5kN |
| Load Side Connections Per Pole | 31.5kN | ||
Mechanical
| Width | 25 | Material | 钢 |
| Max Load | 55.3kN | Boreholes | Parallel |
| End Style | Sealed | Bearing Type | Deep Groove |
| Mounting Type | 并行 | Connector Type | 密封 |
| Number of Rows | 1 | Width - Overall | 25mm |
| Material - Frame | Steel | Diameter - Inside | 45mm |
| Diameter - Outside | 100mm | Load Force (Static) | 31.5 |
| Load Force (Dynamic) | 55.3 | Load Side Wire/Stud Size | 55.3kN |
| Inner Diameter - Recovered | 45mm | ||
Product Info
| Raceway Type | Plain | Other Specifications | 平 |
