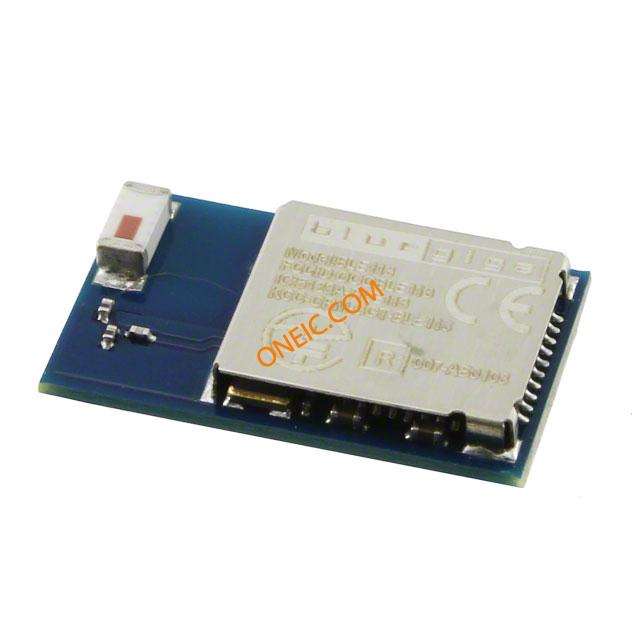

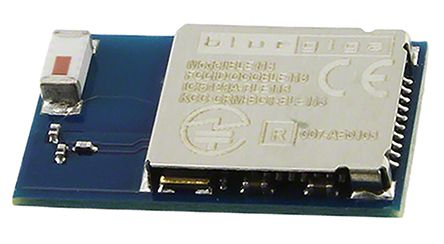

BLE113-A-V1
| Manufacturer | |
| Description | CLASS 2 BLTOOTH 4.0 MODULE Bluetooth / 802.15.1 Modules Class2 BT Smart Module w/ Int Ant Module: Bluetooth; GPIO, I2C, PWM, SPI, UART Bluegiga Technologies 蓝牙芯片 4.0 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1446-1028 | Part # Aliases | BLE113-A-V1 |
| Standard Package | 1,000 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Data Rate | 2 Mbps | Frequency | 2.4GHz |
| Interface | UART | Modulation | GAP, GATT, L2CAP, SMP |
| Memory Size | 128kB Flash, 8kB RAM | Power - Max | 0dBm |
| Sensitivity | -93dBm | Output Power | 0 dBm |
| Number of I/O | GPIO、I2C、串行、UART、USB | Data Interface | PCB, Surface Mount |
| Power - Output | 0dBm | Voltage - Supply | 2 V ~ 3.6 V |
| Current - Transmitting | 18.2mA | Frequency Bands (Low / High) | 2.4 GHz |
| Voltage - Input Offset (Max) | -93dBm | ||
Mechanical
| Width | 9.15mm | Height | 2.1mm |
| Length | 15.75mm | Weight | 0.9 g |
| Packaging | Cut Strip | Mounting Style | SMD/SMT |
| Package / Case | Module | Package Quantity | 10 |
| Size / Dimension | 15 mm x 9.15 mm x 1.9 mm | Antenna Connector | On-Board, Chip |
Product Info
| Spg | 10 | Class | 3 |
| Series | * | Applications | General Purpose |
| Communications | Bluetooth | Number of Units | 1 |
| Firmware Version | 4.0 | Modulation or Protocol | Bluetooth Low Energy, v4.0 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
