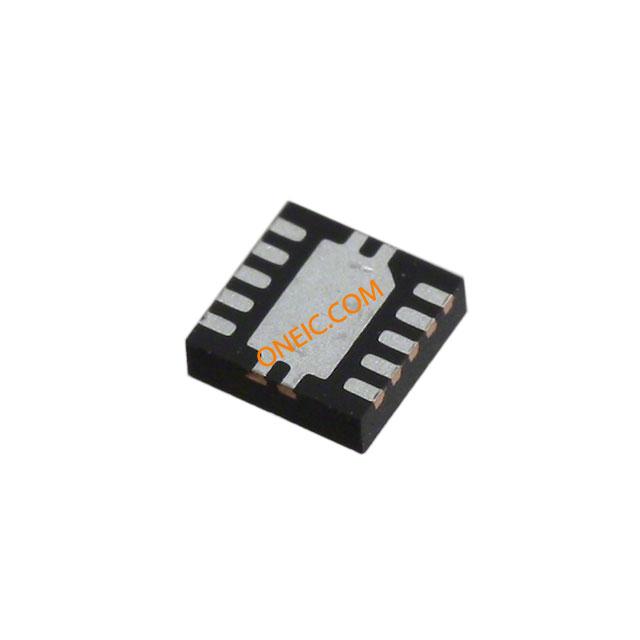

C8051T606-GM
| Manufacturer | |
| Description | MCU 8-bit C8051T60x 8051 CISC 1.5KB EPROM 2.5V/3.3V 11-Pin QFN EP 8-bit Microcontrollers - MCU 1.5K OTP EPROM MCU IC 8051 MCU 1.5K-EEPROM 11-QFN MCU,8051,25MIPS,1.5KB OTP,QFN11 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 336-1662-5 | Product Category | 8-bit Microcontrollers - MCU |
| Standard Package | Rail / Tube | Factory Pack Quantity | 122 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Not Compliant | N | Approval Agency | No |
Electrical
| Speed | 25 MHz | Timer | 3 x 16 bit |
| RAM Size | 128 byte | Core Size | 8-Bit |
| Core Type | 8051 | Interface | I2C/SMBus/UART |
| Clock Rate | 25 MHz | Resolution | 16 bit, 8 bit |
| Memory Size | 128 B | Number of I/O | 6 |
| Voltage Rating | 1.8 → 3.6 V | Watchdog Timer | 1 |
| Frequency - Max | 25MHz | Number of DAC's | 2 |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 2.5|3.3 V | Number of Channels | 0 |
| Program Memory Size | 1.5 KB | Program Memory Type | EPROM |
| Voltage - Supply (Min) | 3.6 | Frequency (Center/Band) | 16bit |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
Mechanical
| Width | 3mm | Height | 1mm |
| Length | 3mm | Weight | 0.000850 oz |
| Packaging | Tube | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 11 | Package / Case | 11QFN EP |
| Package Cooled | QFN | Package Quantity | QFN EP |
| Size / Dimension | 3 x 3 x 1mm | Number of Positions | 11 |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 1(16 bit), 1(8 bit) |
Product Info
| USB | 0 | Series | C8051 |
| Features | Programmable Counter Array | Protocol | 1 |
| On-Chip RAM | No | Peripherals | POR, PWM, WDT |
| Architecture | CISC | Connectivity | SMBus (2-Wire/I²C), UART/USART |
| Core Processor | 8051 | Number of Timers | 3 |
| RF Family/Standard | C8051T60x | DigiKey Programmable | Yes |
| Non-Disclosure Agreement | N | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
