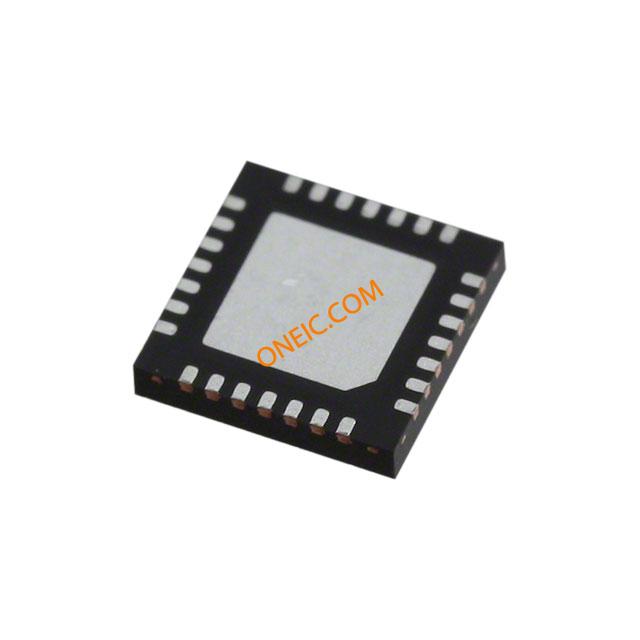

点击放大查看
C8051F362-GM
| Manufacturer | |
| Description | MCU 8-bit C8051F36x 8051 CISC 32KB Flash 3.3V 28-Pin QFN EP IC 8051 MCU 32K FLASH 28QFN MCU,8051,100MIPS,32KB Flash,QFN28 8-bit Microcontrollers - MCU 32KB 100MIPS 10ADC 10DAC 28Pin MCU Silicon Labs C8051F 系列 8 bit 8051 MCU, 24.5MHz, 32 kB ROM 闪存, 1280 B RAM, 48针 TQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Trays |
| Factory Pack Quantity | 73 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Not Compliant | N | Approval Agency | No |
Electrical
| Speed | 100 MHz | Timer | 4 x 16 bit |
| RAM Size | 1 KB | Core Size | 8-Bit |
| Core Type | 8051 | Interface | I2C/SMBus/SPI/UART |
| Clock Rate | 24.5 MHz | Resolution | 16 bit, 8 bit |
| Memory Size | 1 KB | Number of I/O | 25 |
| Number of Bits | 10 | Voltage Rating | 2.7 → 3.6 V |
| Watchdog Timer | 1 | Data Converters | A/D 17x10b; D/A 1x10b |
| Frequency - Max | 24.5MHz | Number of DAC's | 1 |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 3.3 V | Resolution (Bits) | 10bit |
| Number of Channels | 0 | Analog Input:Output | 2 |
| Program Memory Size | 32 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 21 | Voltage - Supply (Min) | 3.6 |
| Frequency (Center/Band) | 16bit | Number of Bits per Element | 10 |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V | ||
Mechanical
| Width | 7mm | Height | 0.95mm |
| Length | 7mm | Weight | 0.002390 oz |
| Packaging | Tube | Lead Style | No Lead |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 28 | Package / Case | 28QFN EP |
| Package Cooled | TQFP | Length - Overall | 5 |
| Package Quantity | QFN EP | Size / Dimension | 7 x 7 x 0.95mm |
| Number of Positions | 28 | Shell Size - Insert | 0.88 |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 1(16 bit), 1(8 bit) |
Product Info
| SPI | 1 | USB | 0 |
| Series | C8051 | Features | Programmable Counter Array |
| Protocol | 1 | On-Chip RAM | 21-chx10-bit |
| Peripherals | POR, PWM, Temp Sensor, WDT | Architecture | CISC |
| Connectivity | SMBus (2-Wire/I²C), SPI, UART/USART | Core Processor | 8051 |
| Number of Timers | 4 | RF Family/Standard | C8051F36x |
| DigiKey Programmable | Yes | Printed Circuit Board | 28 |
| Non-Disclosure Agreement | N | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
