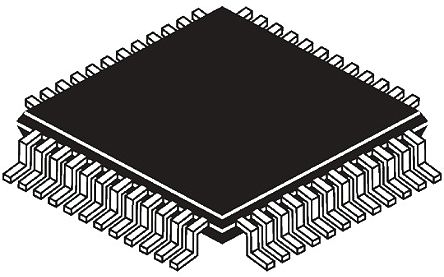

点击放大查看
C8051F345-GQ
| Manufacturer | |
| Description | MCU 8-bit C8051F34x 8051 CISC 32KB Flash 3.3V/5V 48-Pin TQFP 8-bit Microcontrollers - MCU 25 MIPS 32KB 10ADC IC 8051 MCU FLASH 32K 48TQFP IC, 8BIT MCU 32KB 25MIPS 10ADC, SMD Silicon Labs C8051F 系列 8 bit 8051 MCU, 25MHz, 32 kB ROM 闪存, 2304 B RAM, 1xUSB, 48针 TQFP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | 8-bit Microcontrollers - MCU | Standard Package | Trays |
| Factory Pack Quantity | 250 | Standard Package Name | QFP |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Not Compliant | N | Approval Agency | No |
Electrical
| Speed | 25 MHz | RAM Size | 2.25 KB |
| Core Size | 8-Bit | Core Type | 8051 |
| Interface | I2C/SMBus/SPI/UART/USB | Clock Rate | 25 MHz |
| Memory Size | 2304 B | Memory Type | :Flash |
| Number of I/O | 40 | Number of Bits | 10 |
| Voltage Rating | 2.7 | Watchdog Timer | 1 |
| Clock Frequency | :25MHz | Data Converters | A/D 20x10b |
| Number of DAC's | :5 | Oscillator Type | Internal |
| Serial Protocol | 2 | Voltage - Supply | 3.3|5 V |
| Number of Channels | 17 | Analog Input:Output | 2 |
| Program Memory Size | 32 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 17 | Voltage - Supply (Min) | 5.25 |
| Number of Bits per Element | 10 bit | Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V |
Mechanical
| Weight | 0.004603 oz | Packaging | Tray |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Style | SMD/SMT | Number of Pins | :48 |
| Package / Case | 48TQFP | Package Cooled | TQFP48 |
| Material Finish | :- | Package Quantity | TQFP |
| Number of Positions | 48 | Number of Cores/Bus Width | 8 Bit |
Product Info
| SPI | 1 | USB | 1 |
| Series | C8051 | Features | Programmable Counter Array |
| Protocol | 1 | Flash Size | :32KB |
| Application | :USB Microcontroller | On-Chip RAM | 17-chx10-bit |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | Architecture | CISC |
| Connectivity | EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART, USB | Core Processor | 8051 |
| Number of Timers | 4 | Controller Series | :- |
| RF Family/Standard | C8051F34x | DigiKey Programmable | Yes |
| Microcontroller Features | :USB 2.0, 2 x UART, SMBus, SPI | Non-Disclosure Agreement | N |
| Number of A/D Converters | :17 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
