GW6BMJ27HED
| Manufacturer | |
| Description | LED ZENIGATA High Power LEDs - White 12W Mini Zenigata 2700K 990LM 82CRI |
| Category |
Business
| Standard Package | 400 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 18V | Wavelength | 2700K |
| Luminous Flux | 990 lm | Current - Output | 640mA |
| Driver Circuitry | Yes | Voltage - Supply | 18V |
| LED Forward Current | 320 mA | LED Forward Voltage | 36 V |
| Current Rating (Max) | 900mA | ||
Mechanical
| Color | White, Warm | Width | 12 mm |
| Height | 1.6 mm | Length | 15 mm |
| Packaging | Tray | Lamp Color | 2700 K |
| Mounting Style | SMD/SMT | Connector Usage | No |
| Size / Dimension | 6.50mm L x 15.00mm W | Illumination Color | Warm White |
| CRI (Color Rendering Index) | 82 | ||
Product Info
| Type | Chip On Board (COB) | CCT (K) | 2700K |
| Configuration | Square | ||
Environmental
| Luminous Flux @ Current/Temperature | 990 lm | ||
Documents & Media
Similar Parts
RACD20-700
RECOM Lighting
LED Drivers Power Supplies 20W AC/DC LED PW SUP 90-264Vin 6-29Vout AC/DC-CONVERTER AC/DC CONVERTER 700mA 20W LED SUPPLY CC AC/DC 6-29V 700MA LED Power Supply,LED Driver,700mA,20W AC/DC LED POWER SUPPLY, REG; 20WATT LED driver, RACD20-700, Recom Recom LED 驱动器 , 6 → 29V, 0.7A, 20W
RACD30-700
RECOM Lighting
LED Drivers Power Supplies CONV AC/DC 0.7AOUT 110-240VIN 10-43VOUT LED DRVR 12Segment 6-Pin AC/DC CONVERTER 700mA 30W LED SUPPLY CC AC/DC 10-43V 700MA LED Power Supply,LED Driver,700mA,30W LED driver, RACD30-700, Recom Recom LED 驱动器 , 10 → 43V, 0.7A, 30W
RACT20-700-US
RECOM Lighting
LED Power Supplies 90-135VIN 15-28VOUT LED DRIVER AC/DC AC/DC-CONVERTER LED SUPPLY CC AC/DC 15-28V 700MA LED Drivers Power Supplies 90-135VIN 15-28VOUT LED DRIVER AC/DC LEDDr Module 700mA 16W
RACT20-700
RECOM Lighting
LED Power Supplies 180-264VIN 15-28VOUT LED DRIVER AC/DC AC/DC-CONVERTER LED SUPPLY CC AC/DC 15-28V 700MA LED Power Supply,LED Driver,700mA,20W LED Drivers Power Supplies 180-264VIN 15-28VOUT LED DRIVER AC/DC LED driver, RACT20-700, Recom Recom LED 驱动器 , 15 → 28V, 0.7A, 20W LEDDr Module 20W 700mA DIMM

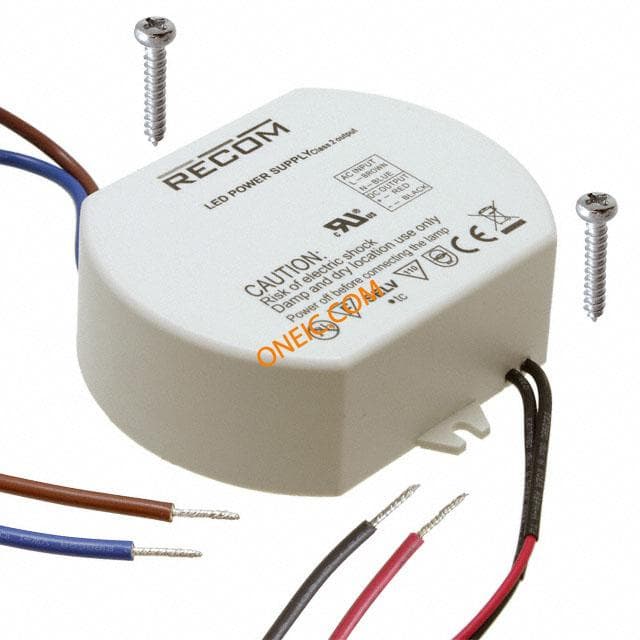

RACD20-700/277
