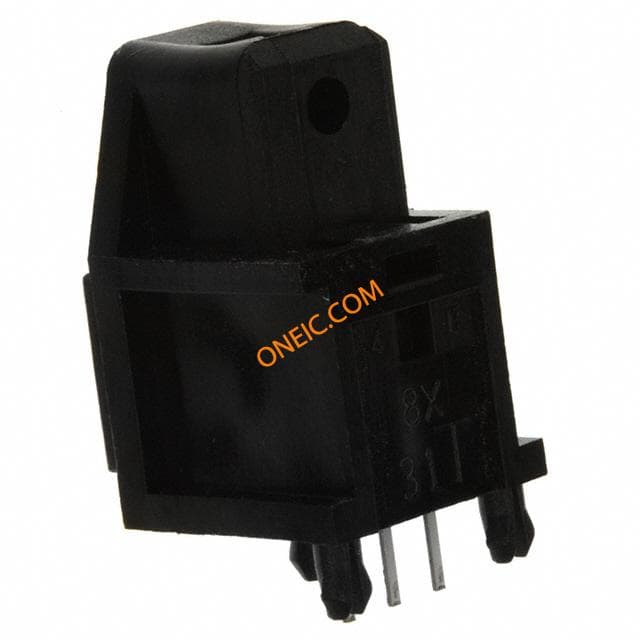

GP1FAV31RK0F
| Manufacturer | |
| Description | Fiber Optic Transmitters, Receivers, Transceivers Reciever Screw Fixing 3V 15.5 Mbps RX Optical Fiber 15.5Mbps 3-Pin RECEIVER FIBER OPTIC 15.5MBPS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Receivers | Product Category | Fiber Optic Transmitters, Receivers, Transceivers |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Jitter | 1 | Data Rate | 15.5 Mbps |
| Wavelength | 700 nm | Voltage Rating | 2.7 |
| Data Rate (Max) | 15.5Mbps | Rise Time (Typ) | 15(Typ) |
| Current - Output | 15mA | Voltage - Supply | 3 V |
| Wavelength - Peak | 700 | Voltage - Supply (Min) | 3.6 |
| Power - Minimum Receivable | -24dBm | Max Propagation Delay @ V, Max CL | 8(Typ) |
Mechanical
| Width | 12 | Mounting Type | Snap in |
| Length - Overall | 12 | Number of Positions | 3 |
| Shell Size - Insert | 19 | ||
Product Info
| Type | RX | Applications | Digital Audio |
| Printed Circuit Board | 3 | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 70 C |
