F50360
| Manufacturer | |
| Description | LED Tri-Color Blue/Green/Red 4-Pin SMD T/R High Power LEDs - Multi-Color RGB Full Color 4 Watt LED RGB 6MM X 5MM WTR CLR SMD Z-Power LED P5-II Full Colour RGB, SMD Power LED red / green / blue, F50360, Seoul Semiconductors |
| Category |
Business
| Other Names | 897-1016-2 | Product Category | High Power LEDs - Multi-Color |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Optic Size | 6 mm x 5 mm x 1 mm | Wavelength | 625nm, 525nm, 460nm |
| Luminous Flux | 13|57|35 lm | Power - Rated | 4 W |
| Viewing Angle | 120 ° | Current - Output | 3 x 350mA |
| Voltage - Supply | 2.5V Red, 3.8V Green, 3.6V Blue | LED Forward Current | 350 mA |
| LED Forward Voltage | 2.5 V, 3.8 V, 3.6 V | Current Rating (Max) | 4 x 400mA |
| Wavelength - Dominant | 625 nm, 525 nm, 460 nm | Lumens/Watt @ Current - Test | 40 lm/W Red, 43 lm/W Green, 10 lm/W Blue |
| Flux @ 25degC, Current - Test | 35 lm Red, 57 lm Green, 13 lm Blue | Flux @ 85degC, Current - Test | 21 lm Red, 51 lm Green, 13 lm |
Mechanical
| Color | Blue/Green/Red | Packaging | Reel |
| Lens Color | Clear | Lens Style | Circular |
| Light Color | blue | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | 4 |
| Package / Case | 4SMD | Package Quantity | 6 x 5mm |
| Illumination Color | RGB | ||
Product Info
| Type | Tri-Color | Number of LEDs | 3 |
| Angle of Incidence (AOI) | 120 | ||
Environmental
| Operating Temperature | + 85 C | Thermal Resistance of Package | 25°C/W Red, 25° Green, 22°C/W Blue |
| Luminous Flux @ Current/Temperature | 40 lm Red, 66 lm Green, 15 lm Blue | ||
Documents & Media
Similar Parts
803126
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON K2 BRD STAR LED IMS LUXEON K2
803267
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON REBEL ARRAY LED IMS LUXEON REBEL
803291
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR NICHIA PWR LED 6.5X5 BOARD LED IMS NICHIA PWRLED
803269
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY SEOUL P4 ARRAY LED IMS SEOUL SEMI ZPWR
803790
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY CREE MC-E ARRAY LED IMS CREE XLAMP MC-E
803266
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON K2 ARRAY LED IMS LUXEON K2
803265
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON I III & V ARRAY LED IMS LUXEON I/III/V
803803
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY SEOUL P5 ARRAY STAR LED IMS SEOUL SEMI P5
803127
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON REBEL BRD STAR LED IMS LUXEON REBEL ThermalClad Star IMS Lumileds Rebel
803125
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON I III & V BRD STAR LED IMS LUXEON I/III/V
803774
Bergquist
BOARD LED IMS SEOUL SEMI P5
803773
Bergquist
BOARD LED IMS SEOUL SEMI P5

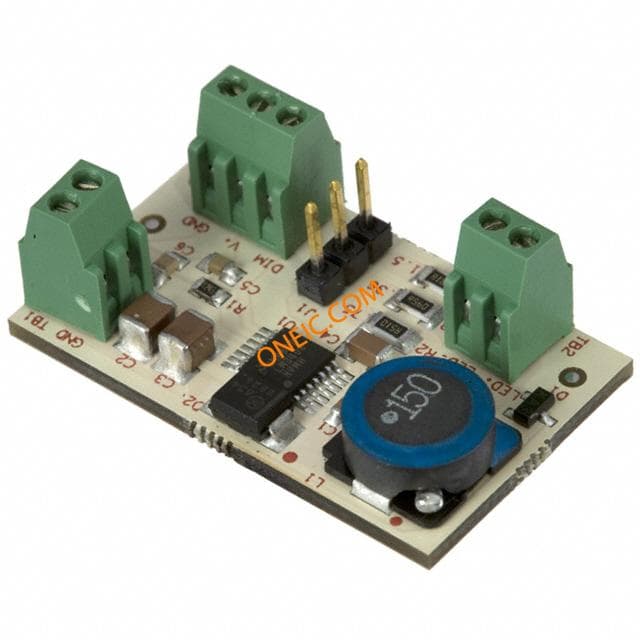

DKSB1003A
