B42180
| Manufacturer | |
| Description | LED Uni-Color Blue 2-Pin SMD T/R High Power LEDs - Single Color Blue 465nm 3.8 Watt 22lm LED BLUE 465NM WTR CLR SMD P4 Z-Power LED Blue 22 lumen typical Power LED blue, B42180, Seoul Semiconductors Seoul Semiconductor Z-Power 系列 蓝色 (465 nm 主波长) LED, , 3.25 V, 130 °视角, 表面安装 |
| Category |
Business
| Other Names | 897-1029-2 | Product Category | High Power LEDs - Single Color |
| Standard Package | Tape & Reel | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 1 | Lamp Type | 透明 |
| Wavelength | 465 nm | Luminous Flux | 22 lm |
| Power - Rated | 3.8 W | Viewing Angle | 130 ° |
| Voltage Rating | 4.1V | Current - Output | 350mA |
| Voltage - Supply | 3.25V | Wavelength - Peak | 465 nm |
| LED Forward Current | 350 mA | LED Forward Voltage | 3.25 V |
| Current Rating (Max) | 800mA | Wavelength - Dominant | 465 nm |
| Lumens/Watt @ Current - Test | 19 lm/W | Flux @ 25degC, Current - Test | 22 lm (Typ) |
| Flux @ 85degC, Current - Test | 20 lm | ||
Mechanical
| Color | Blue | LED Color | Blue |
| Packaging | Reel | Lens Style | Circular |
| Light Color | blue | Mounting Type | Surface Mount |
| Mounting Style | Top Mount | Number of Pins | 2 |
| Package / Case | 2SMD | Lens Style/Size | 130° |
| Package Quantity | 8 Dia. x 5.08mm | Size / Dimension | 7.4 x 7.4 x 5.08mm |
| Illumination Color | Blue | Number of Contacts | 2 |
Product Info
| Type | Uni-Color | Series | Z Power |
| Optic Shape | 圆形 | Number of LEDs | 1 |
| Output Configuration | Surface Mount | Angle of Incidence (AOI) | 125 |
Environmental
| Operating Temperature | + 85 C | Thermal Resistance of Package | 10°C/W |
| Luminous Flux @ Current/Temperature | 53 lm | ||
Similar Parts
803126
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON K2 BRD STAR LED IMS LUXEON K2
803267
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON REBEL ARRAY LED IMS LUXEON REBEL
803291
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR NICHIA PWR LED 6.5X5 BOARD LED IMS NICHIA PWRLED
803129
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR SEOUL P4 BOARD LED IMS SEOUL SEMI Z-PWR
803269
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY SEOUL P4 ARRAY LED IMS SEOUL SEMI ZPWR
803790
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY CREE MC-E ARRAY LED IMS CREE XLAMP MC-E
803266
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON K2 ARRAY LED IMS LUXEON K2
803265
Bergquist Company
Thermal Substrates - MCPCB 36-UP STAR ARRAY LUXEON I III & V ARRAY LED IMS LUXEON I/III/V
803127
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON REBEL BRD STAR LED IMS LUXEON REBEL ThermalClad Star IMS Lumileds Rebel
803289
Bergquist Company
Thermal Substrates - MCPCB 1 X 17 SQ. STRIP SEOUL P4 STRIP LED IMS SEOUL SEMI Z-POWER
803125
Bergquist Company
Thermal Substrates - MCPCB 1-UP INDV STAR LUXEON I III & V BRD STAR LED IMS LUXEON I/III/V

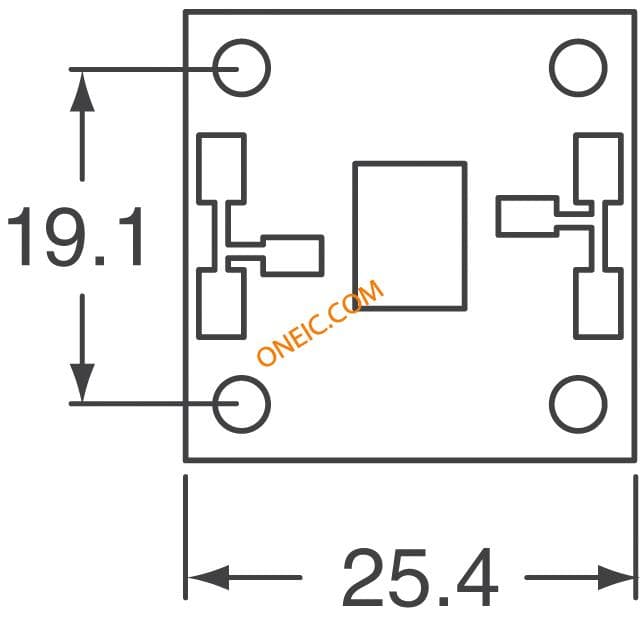

803119
